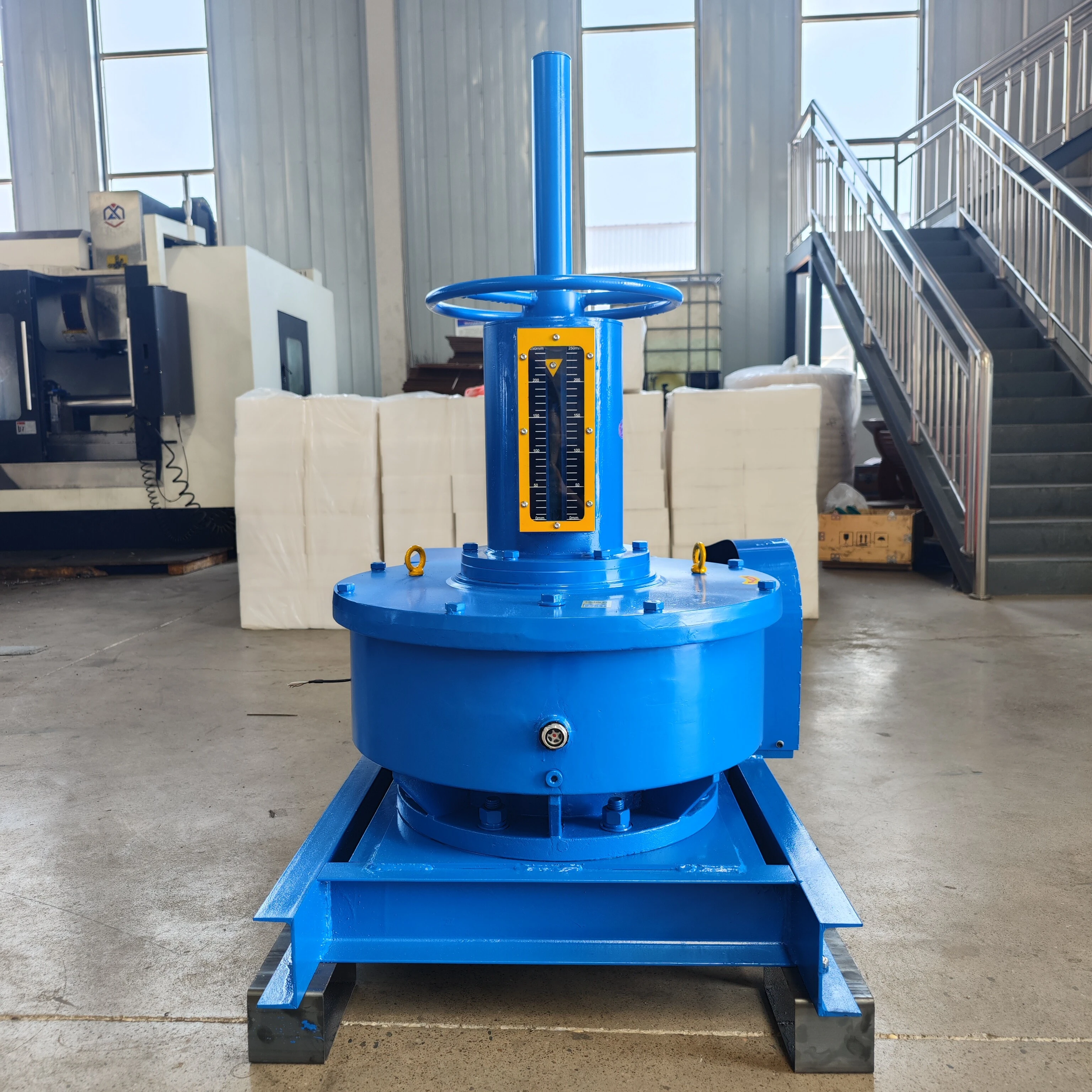

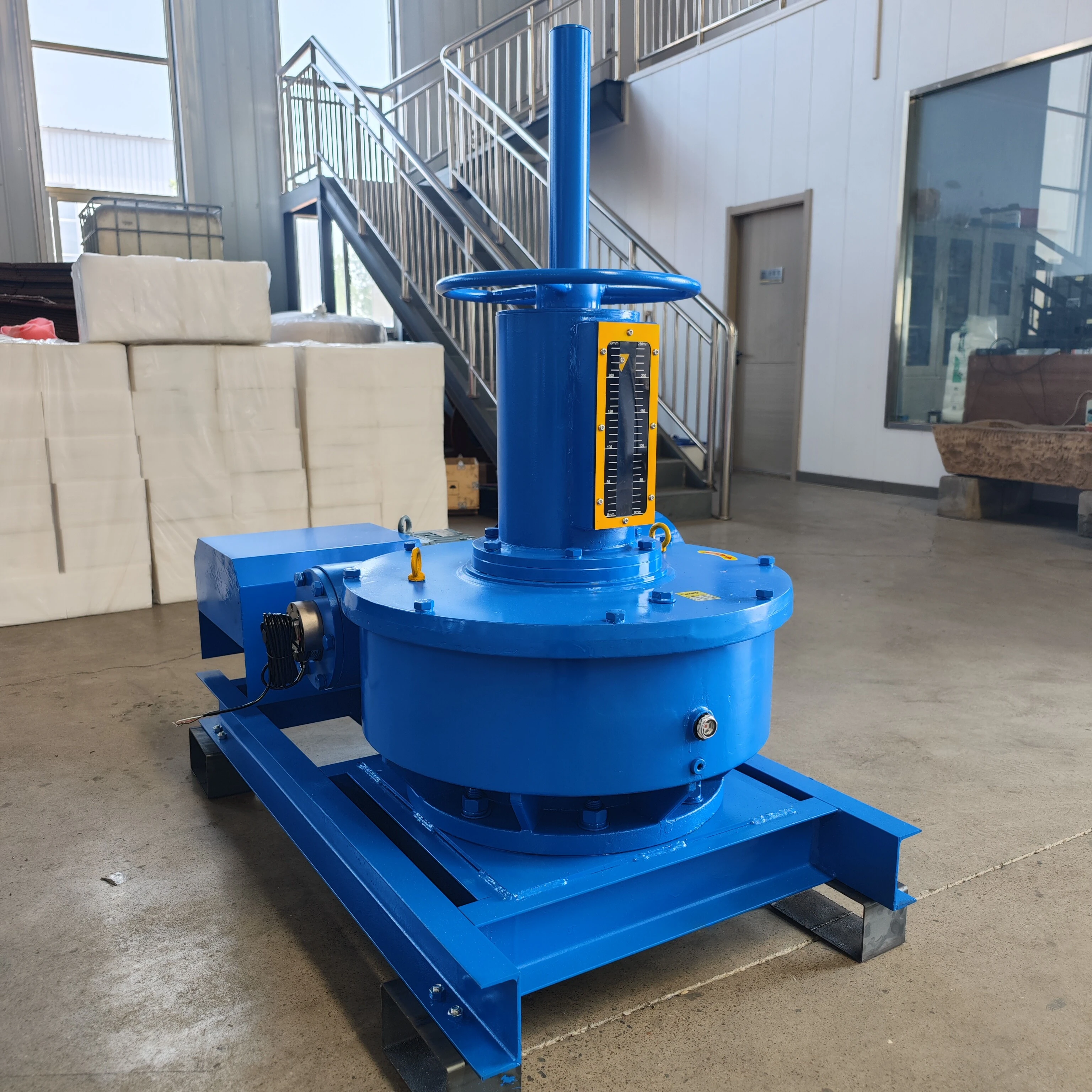

Center Drive Mud Scraper Reducer

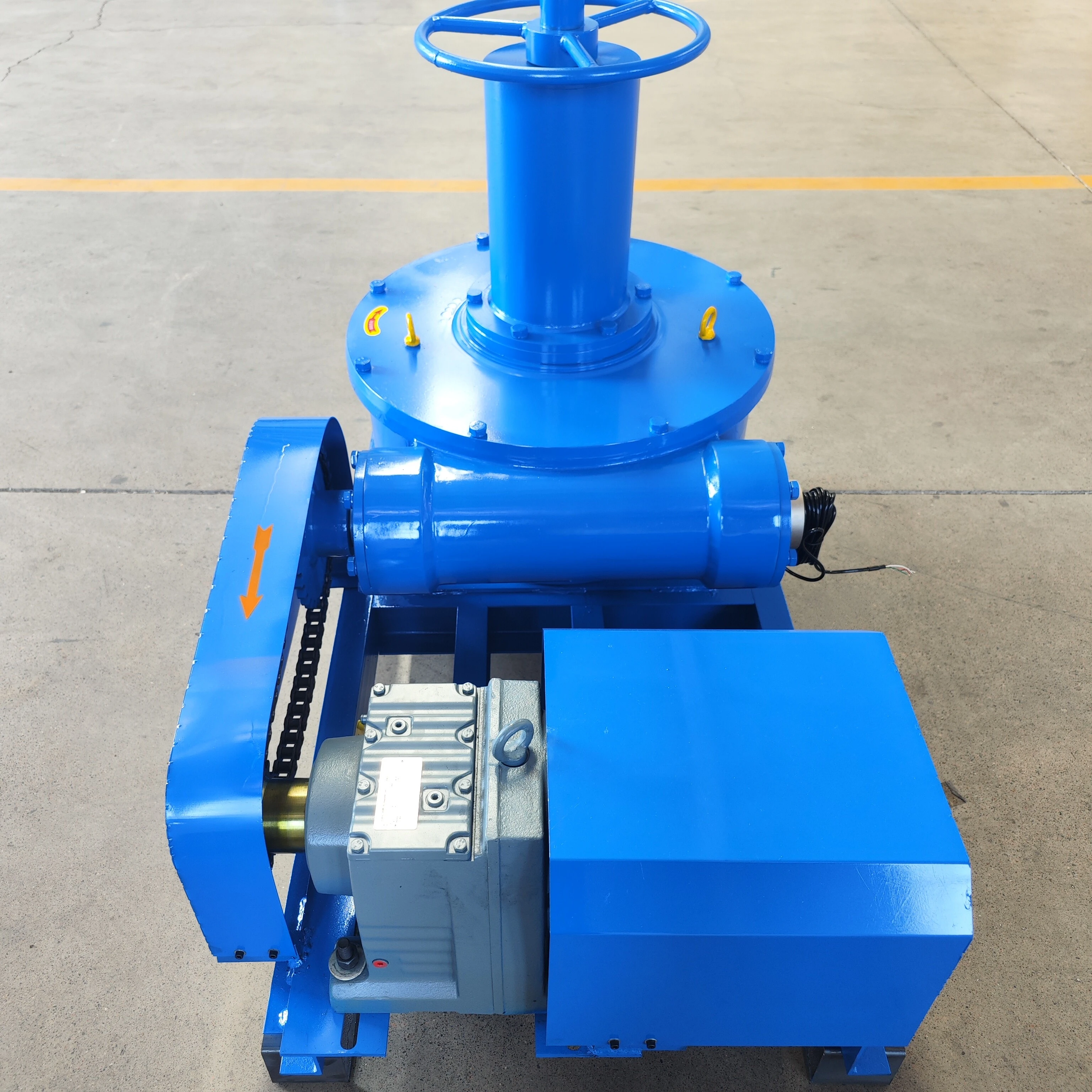

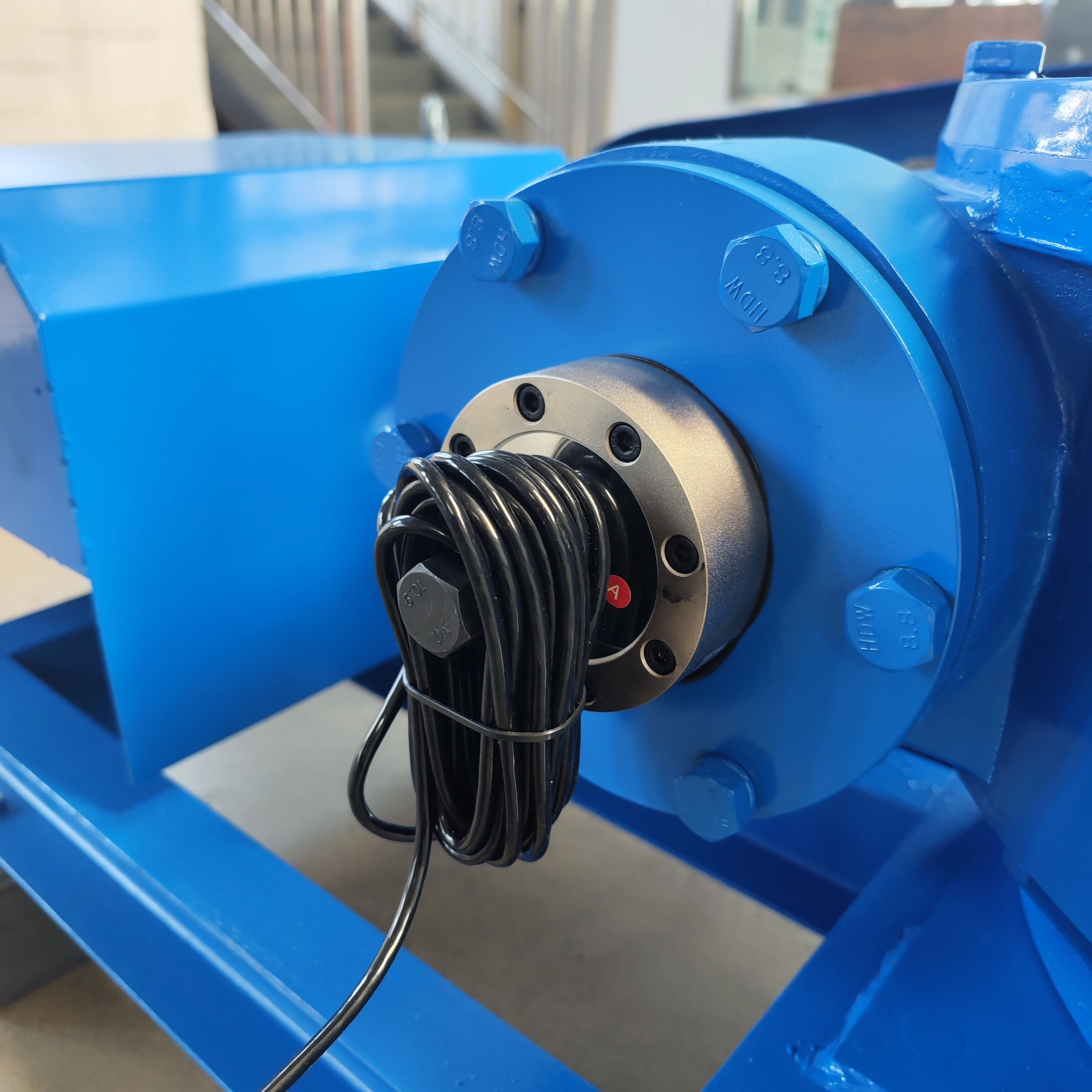

The driving device of JWZ mud scraper adopts single-stage worm gear deceleration drive, which can be driven by cycloid speed reducer, speed-regulating motor through sprocket chain, triangular belt wheel or direct connection. This equipment is a low-speed wheel drive device with large output torque, low noise, smooth operation and no leakage. It is mainly used for water treatment equipment and sludge discharging machinery supporting products. The speed reducer has the forms of manual lifting and dual-purpose lifting, etc. The safety shear pin and spring-type over-torque automatic protection device (JGZ4500) can be added according to the requirements of users to ensure the safe operation of the speed set equipment.

+86 188 8822 2133

+86 182 6300 7605

The specifications of JWZ worm gear reducer for clarification scraper are as follows:

JWZ200JWZ2410JWZ350JWZ420JWZ460 etc.

Choose the appropriate worm gear box according to the size of the clarifier. The following data is for reference only:

Diameter 6 meters: select JWZ200-8-40-ST (DT)

Diameter 8 meters: select JWZ240-10-40-ST(DT)

Diameter 10 meters: select JWZ350-10-60-ST (DT)

Diameter 13 meters: select JWZ420-12-60-ST (DT)

Diameter 6 meters: select JWZ460-10-60-ST (DT)

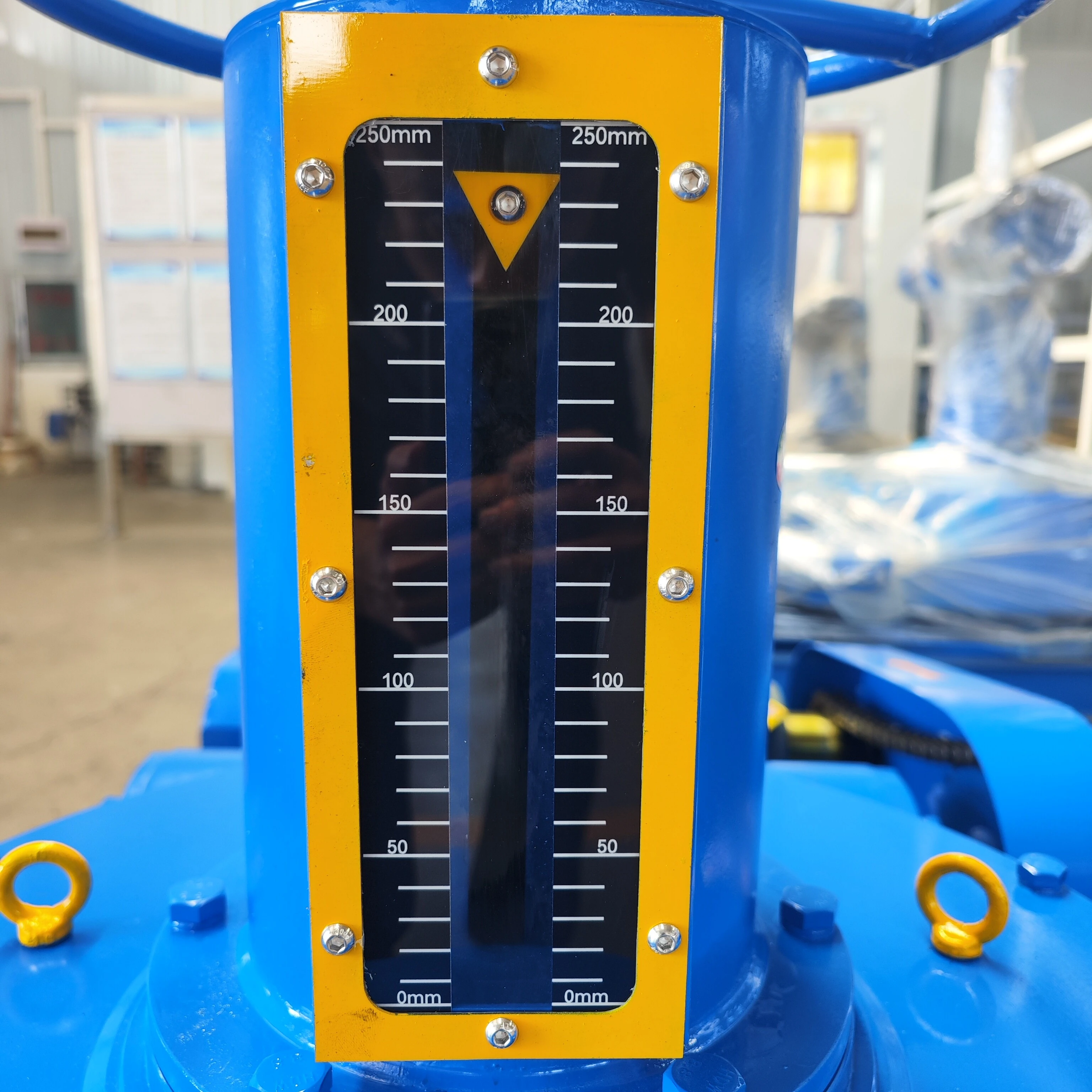

Each of the above models can be equipped with overload protection device, manual lifting (ST) or electric lifting (DT) according to customer needs.

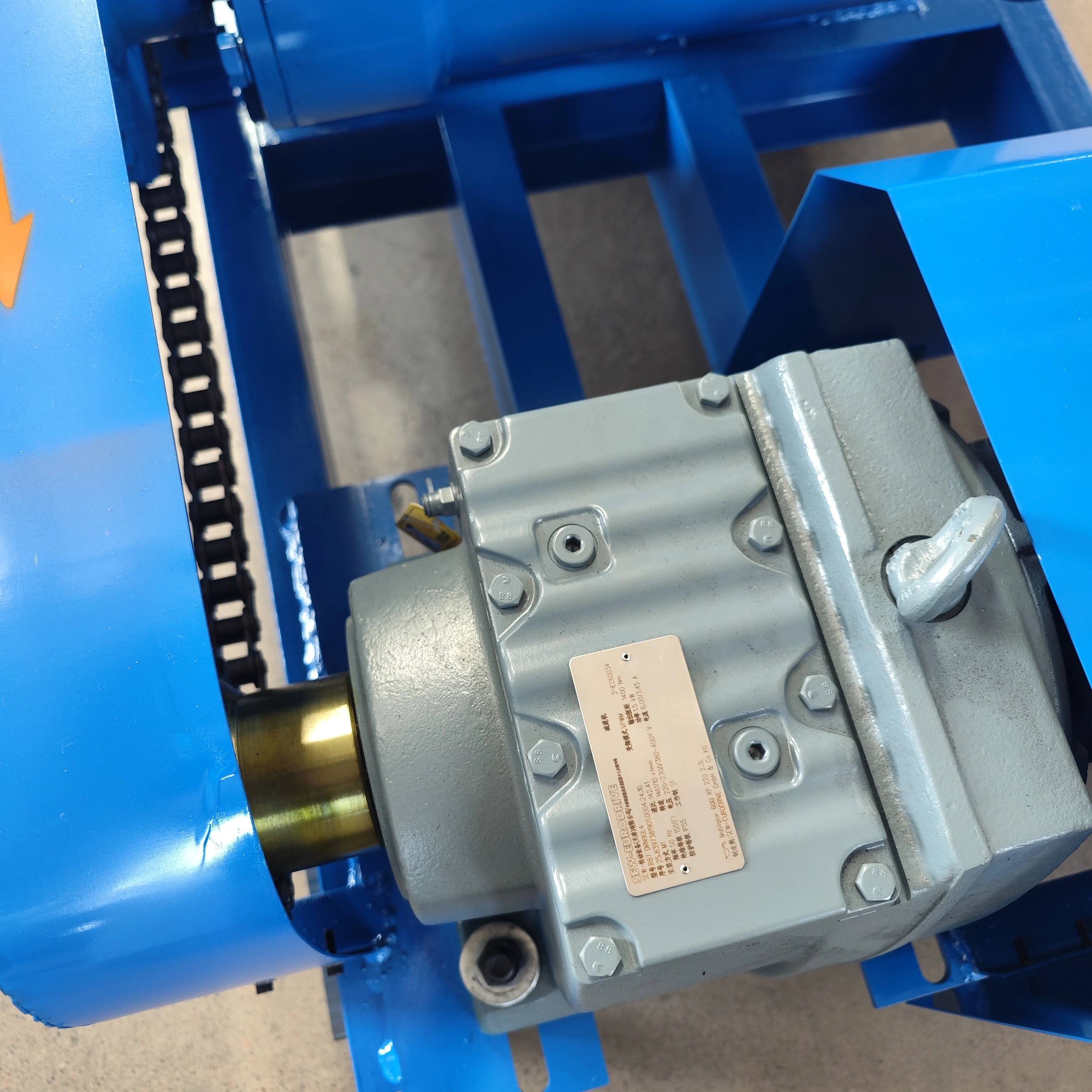

The first stage reduction motor usually adopts a double-motor cycloid pinwheel reducer, and the appropriate reduction motor is selected according to the different specifications of the worm gear box. The worm gear reducer is connected by a sprocket chain.

Technical parameters:

Serial No.	1		2		3	4	5	6	7	8
model	JWZ147		JWZ200		JWZ240	JWZ300	JWZ350	JWZ420	SWZ460	JWZ500
Modulus	6		8		10	10	10	12	10	14
Center distance	147		200		240	300	350	420	460	500
Gear Ratio	20	40	20	40	40	50	60	60	80	60
Rated input power(KW)	0.55		0.75		0.75	1.1	1.5	1.5	1.5	3
Rated output torque(Nm)	2400	2475	4500	4650	7950	12510	18450	26570	34690	46000
