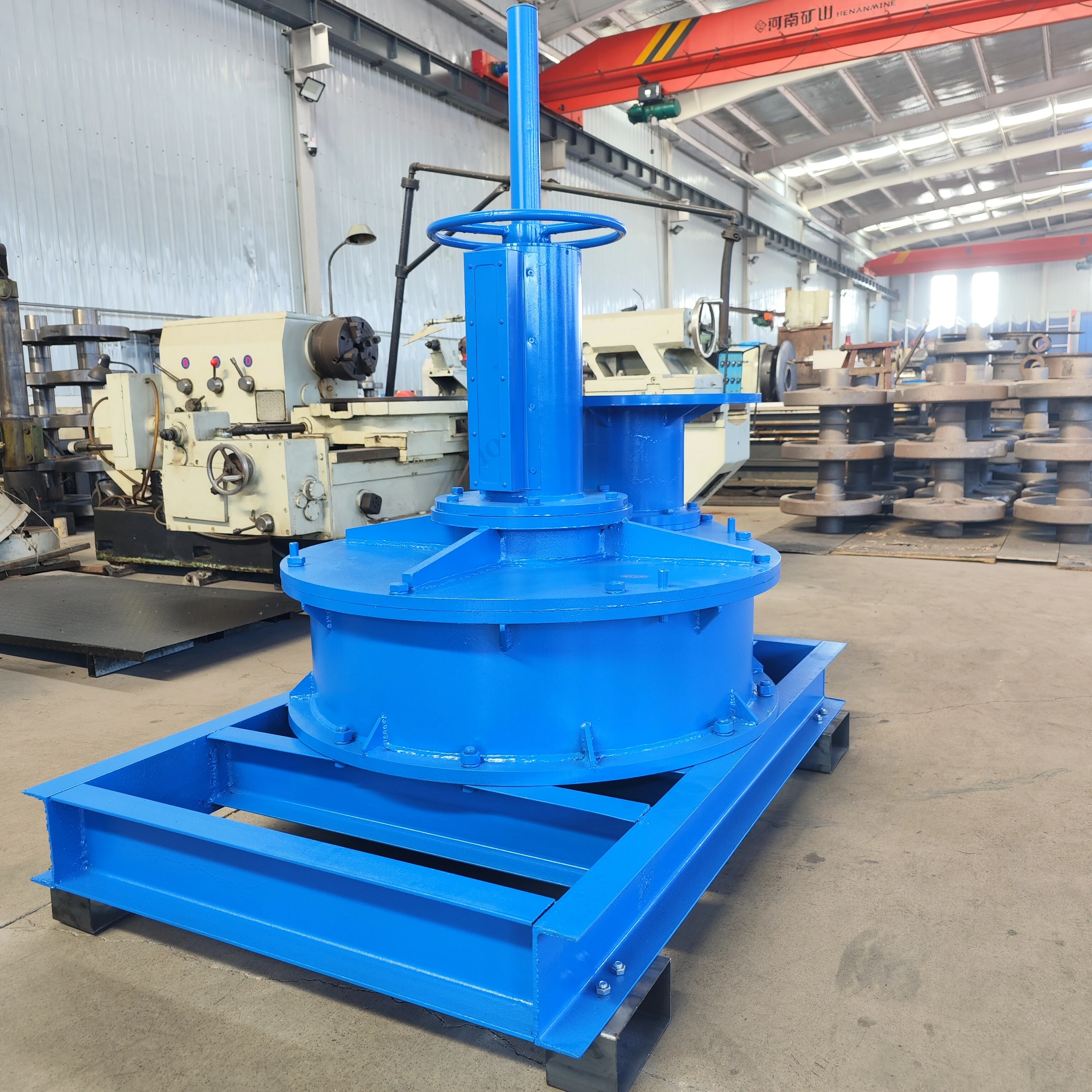

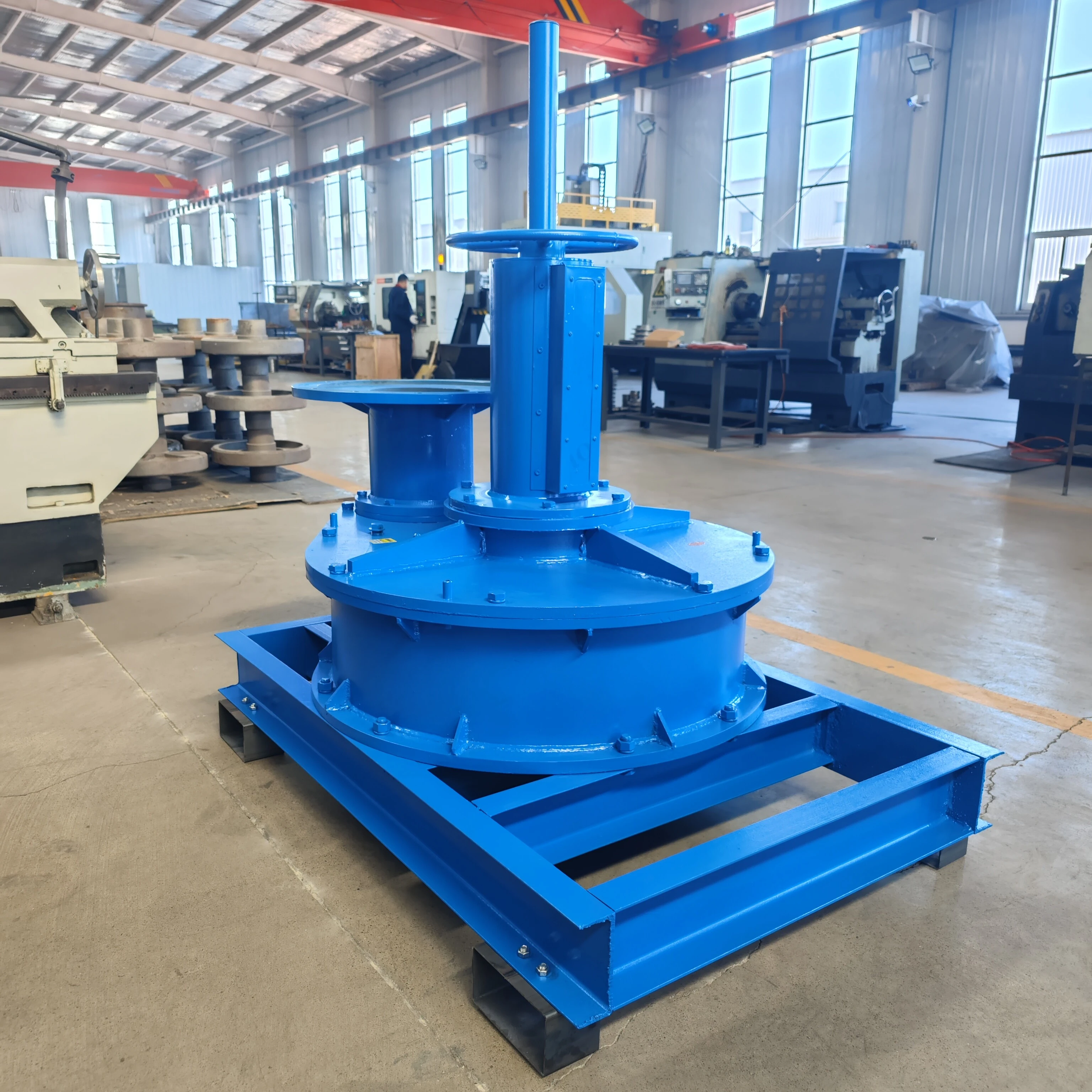

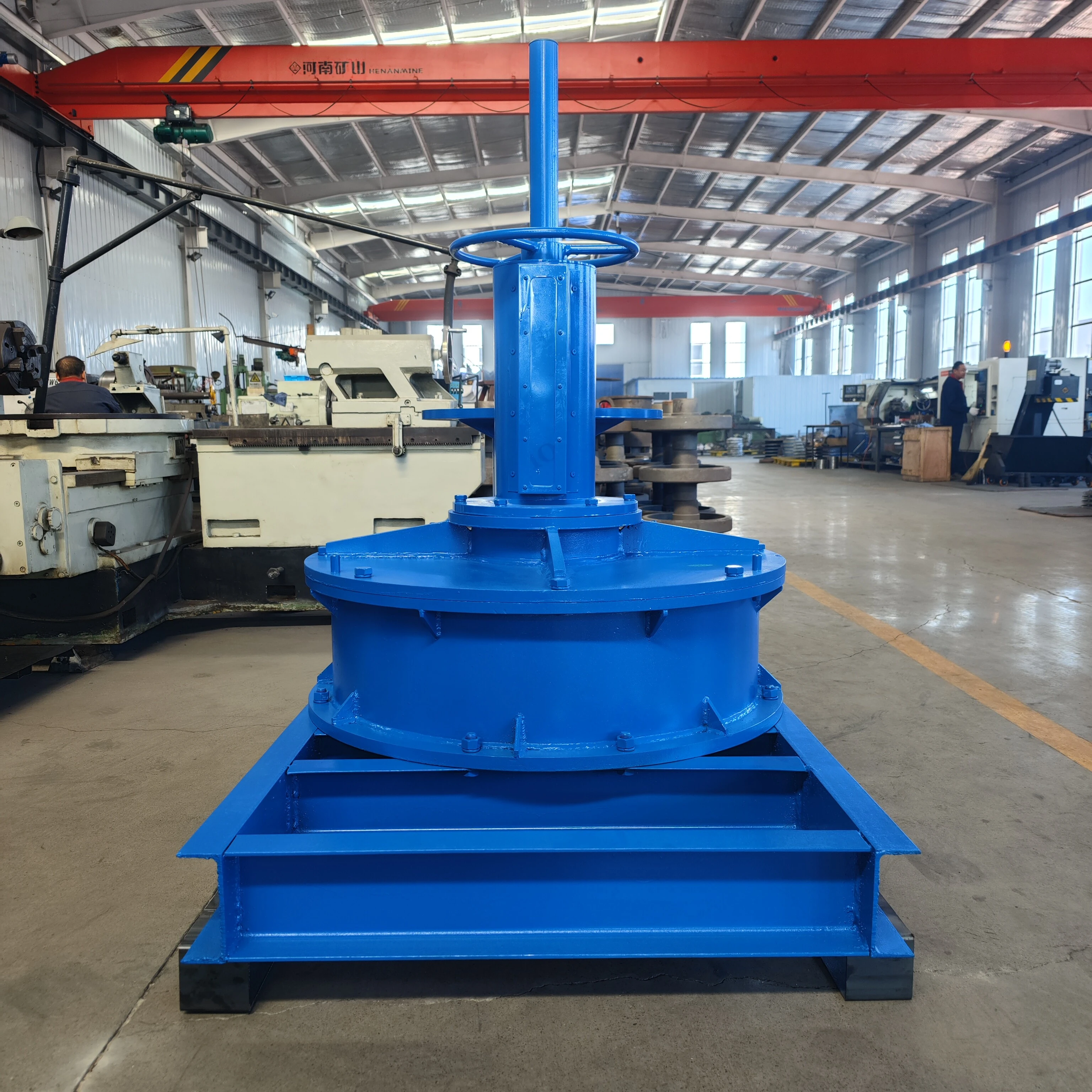

The upper part of the main shaft has no lifting, manual lifting, hand-electric dual-purpose lifting form, lifting height of 300 mm; according to user requirements to increase the over-torque automatic protection device to ensure the safe operation of the whole set of equipment.
Single-row ball slewing bearing, using advanced four-point contact ball structure, can withstand large axial force, radial force and tilting force; the reducer is mainly large transmission ratio, transmission torque, compact structure, low noise, smooth operation, no leakage. Specialized for sewage equipment sludge discharge machinery in the load factor is large, such as steel mills supporting products.

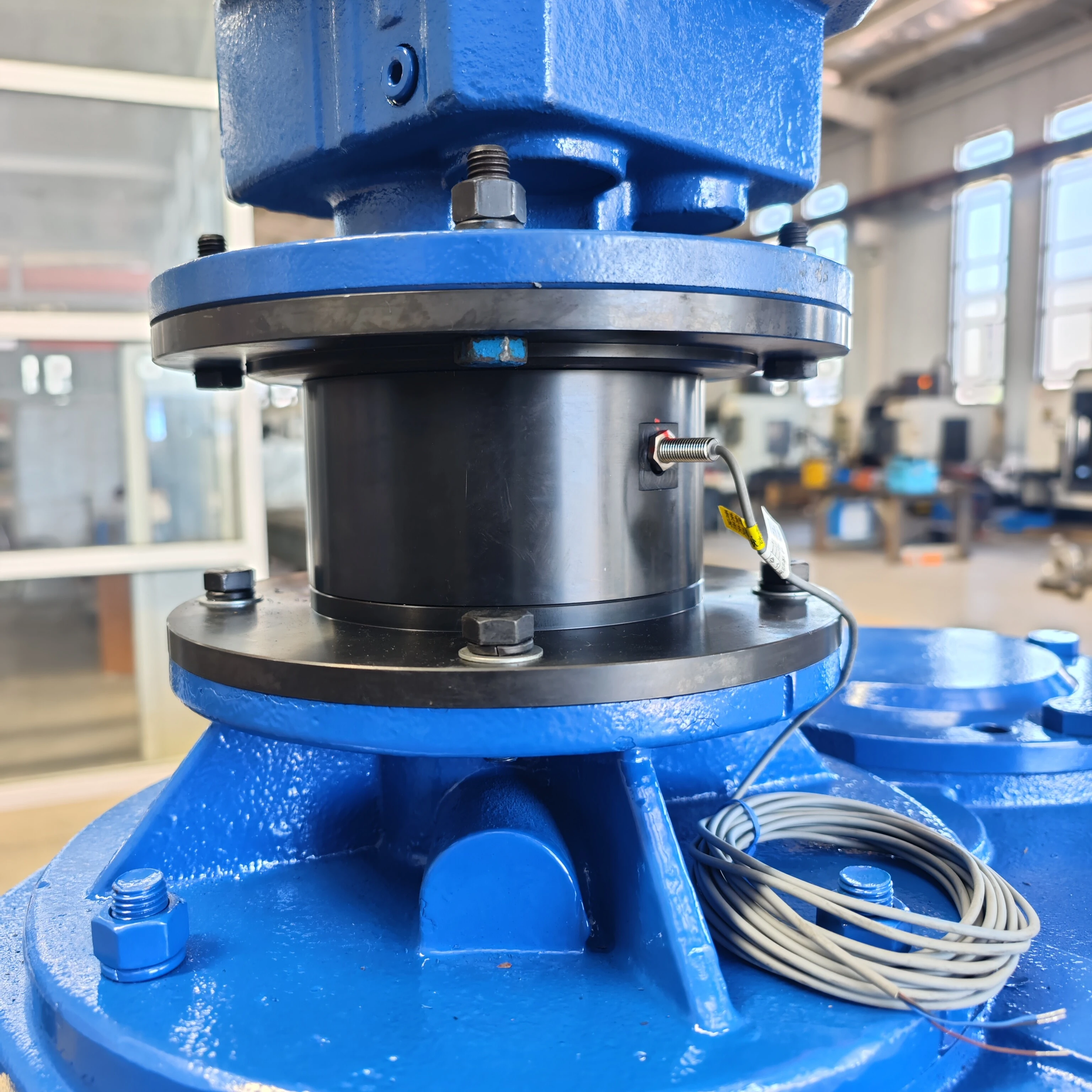

The driving device consists of a pendulum pinwheel reducer, worm gear reducer, or gear reducer output shaft end equipped with a small gear, which then transmits power to the three- to four-stage reduction transmission device of the rotary support drive.
The main shaft features lifting mechanisms in various forms, including non-lifting, manual lifting, and dual-purpose manual-electric lifting, with a lifting height of 300 millimeters. An overload torque automatic protection device can be added upon user request to ensure the safe operation of the entire equipment.
The single-row ball-type rotary support adopts an advanced four-point contact ball structure, capable of withstanding significant axial, radial, and overturning forces. This reducer is characterized by a high transmission ratio, large transmission torque, compact structure, low noise, smooth operation, and zero leakage. It is specifically designed for heavy-load applications in sewage equipment, such as scrapers in steel plants.
