Overview

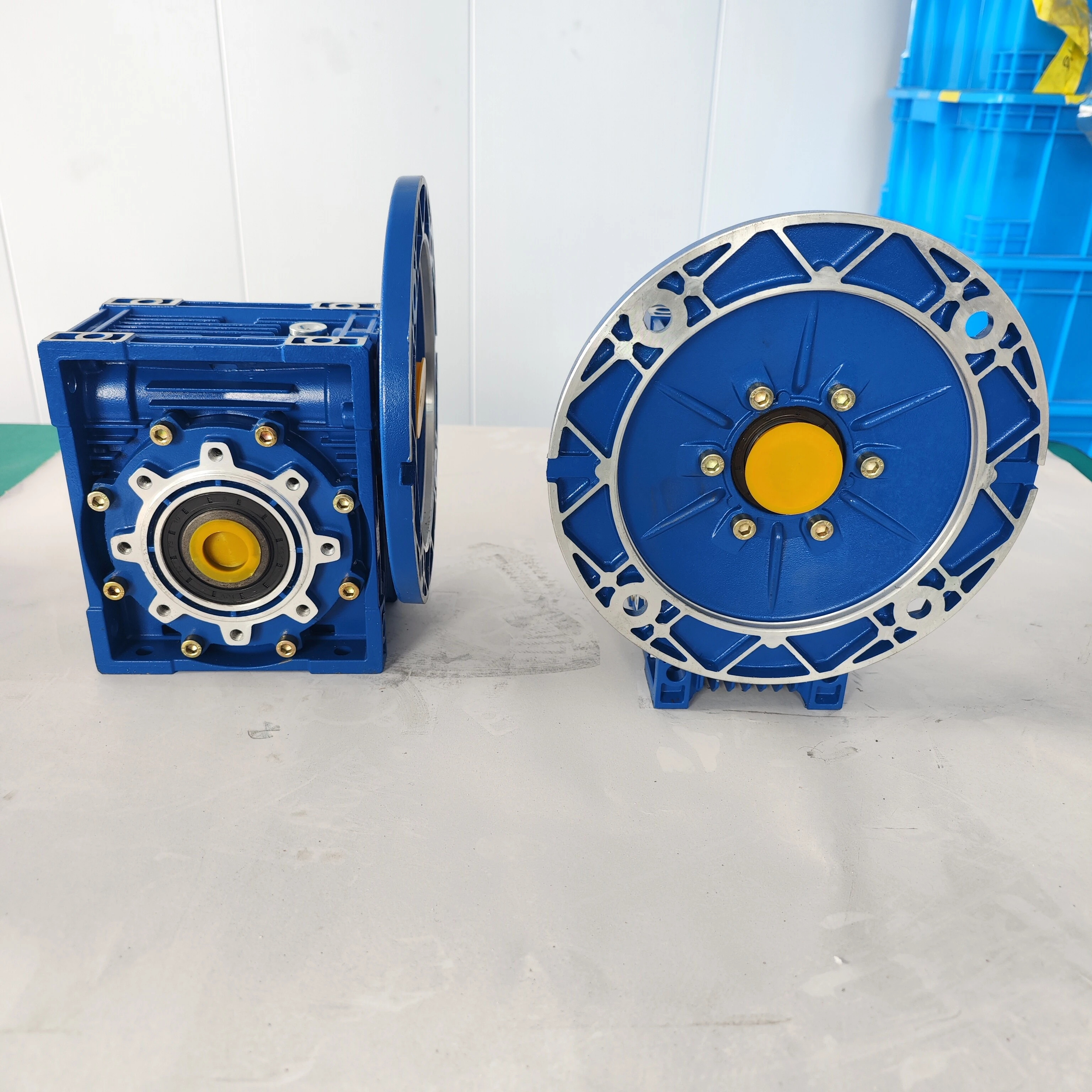

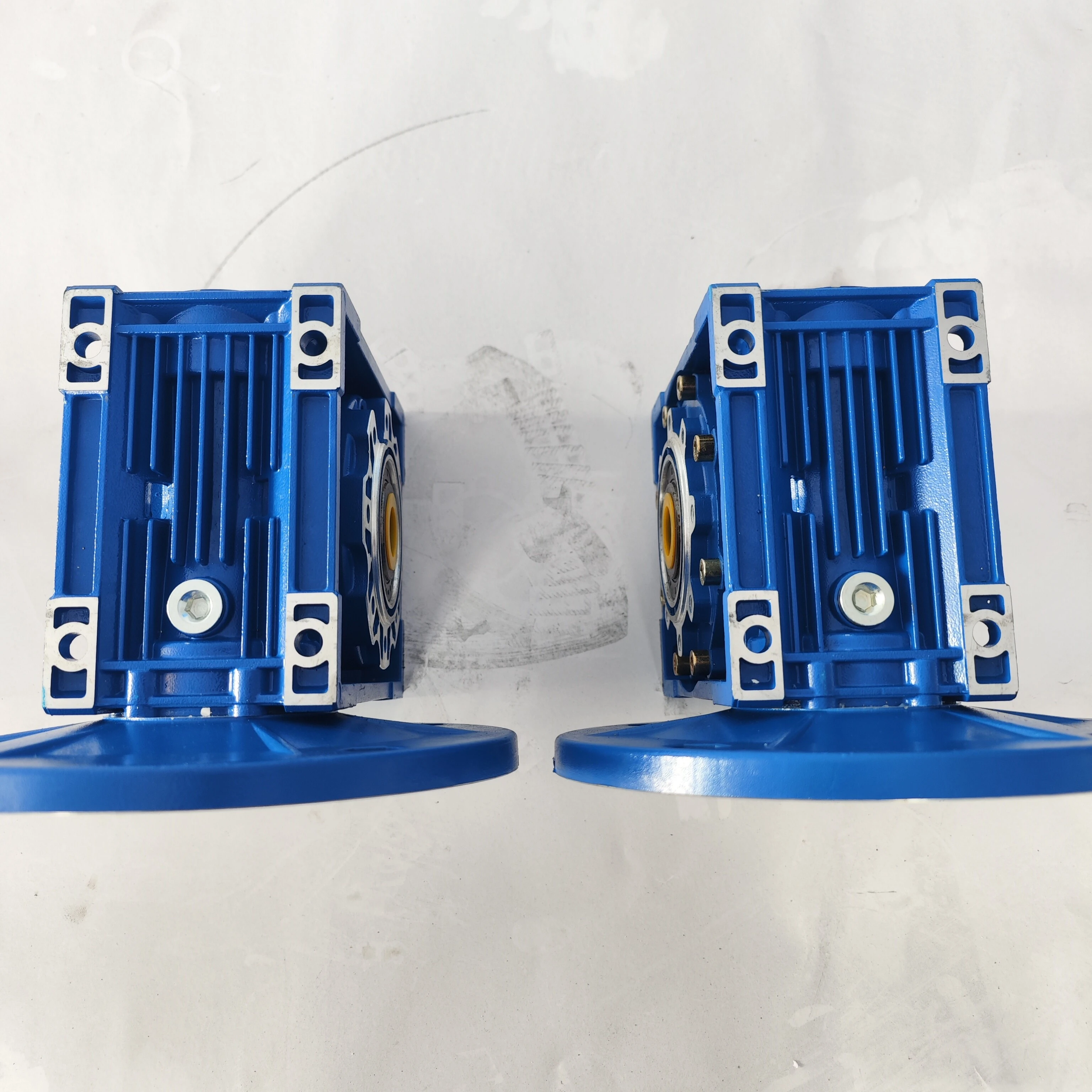

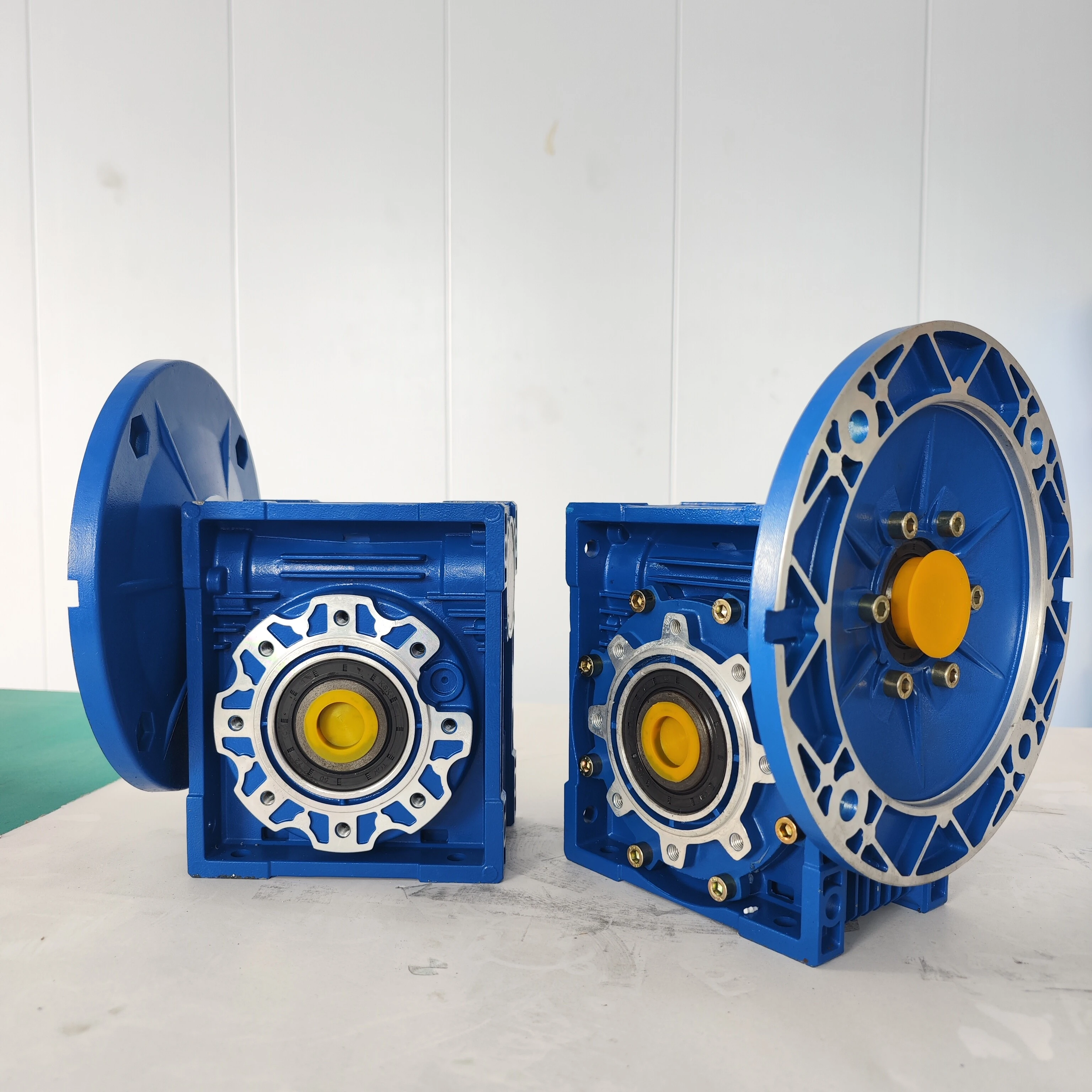

RV series aluminum alloy micro worm reducer is a new generation of practical products developed by our company. It complies with Q/JF01-1999 standard. It is designed according to the latest national standards, produced with new technology and new materials, and absorbs foreign technology and innovates it, making its overall performance better than similar domestic products. It is suitable for the reduction transmission of mechanical equipment in food, leather, textile, medical, glass, ceramics, chemical industry, light industry, etc. It is the best choice for modern transmission system to realize single machine transmission and mechatronics on production line.

The remarkable features of this series of products are: square box shape, high-quality aluminum alloy die-casting box, beautiful and generous; good heat dissipation performance, large load-bearing capacity; multi-faceted installation, hollow output shaft structure, equipped with various input and output methods, and can be easily combined with other transmission machinery, strong adaptability, smooth transmission and rotation, low noise, safe and reliable, economical and durable.

model

NRV type one with input shaft worm reducer,

NMRV type worm reducer with input flange,

PC type one belt front helical gear reduction module worm reducer,

PCRV type - PC+NRRV combined reducer,

NRV+NMRV type double-stage cascade worm reducer with input shaft,

NMRV+NMRV type double-stage cascade worm reducer with input flange.

Structural Configuration

According to customer needs, RV reducer can be configured with: worm tail shaft (E), output flange (F), torque arm (TA), with extension

Flange input (YS), worm gear output shaft single output (AB) double output (AS), output with front reduction module (PC).

Center distance

(1) The specifications of single-stage reducers are: 25, 30, 40, 50, 63, 75, 90, 110, 130, 150, 185.

(2) The specifications of two-stage reducers are: 25/30, 25/40, 30/40, 30/50, 30/63, 40/75, 40/90, 50/110, 63/130, 63/150.

(3) PCRV specifications are: 063/40, 063/50, 063/63, 071/50, 071/63, 071/75, 071/90, 080/75, 080/90, 080/110, 080/130, 090/110, 090/130.

Gear Ratio

The single-stage transmission ratios are: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, and 100.
