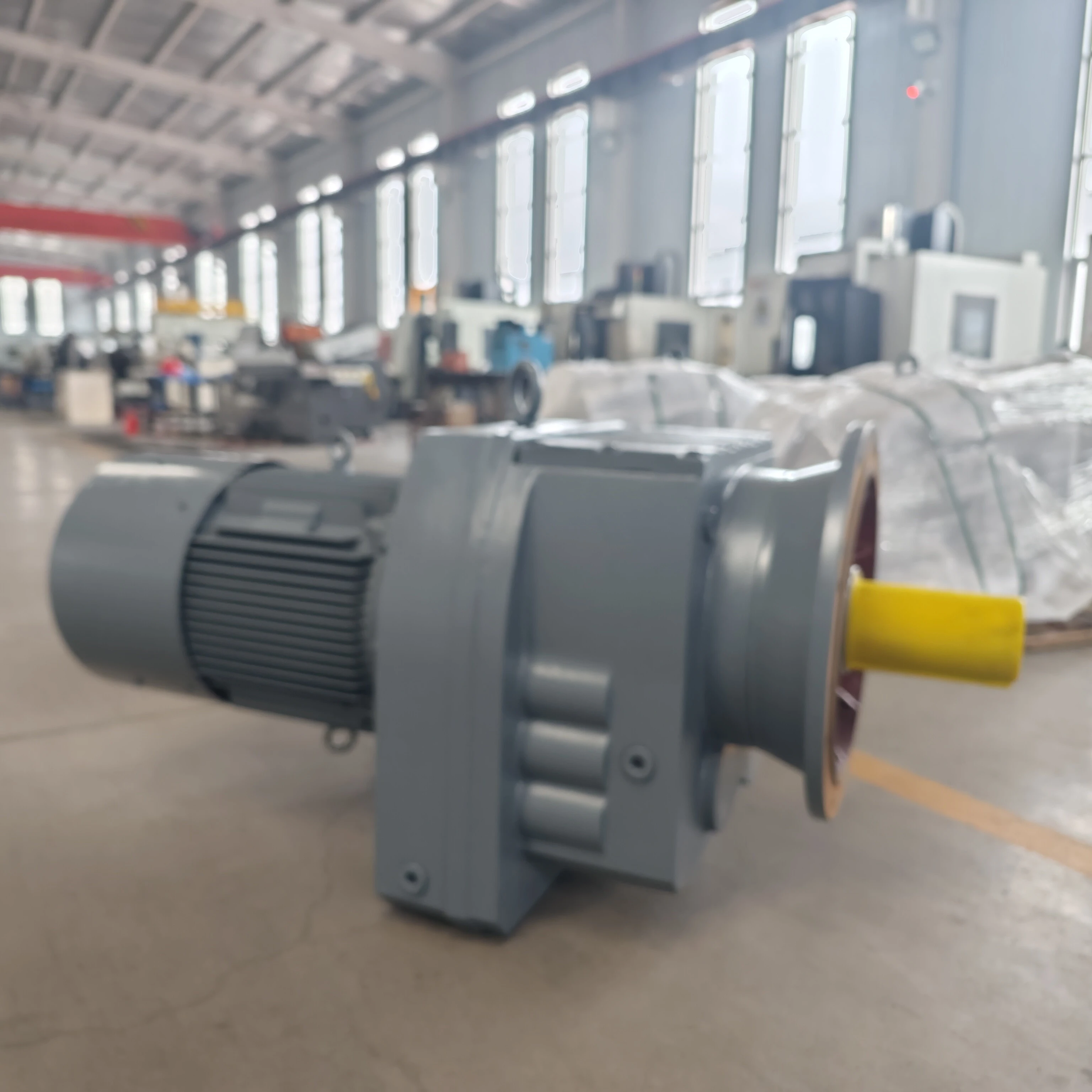

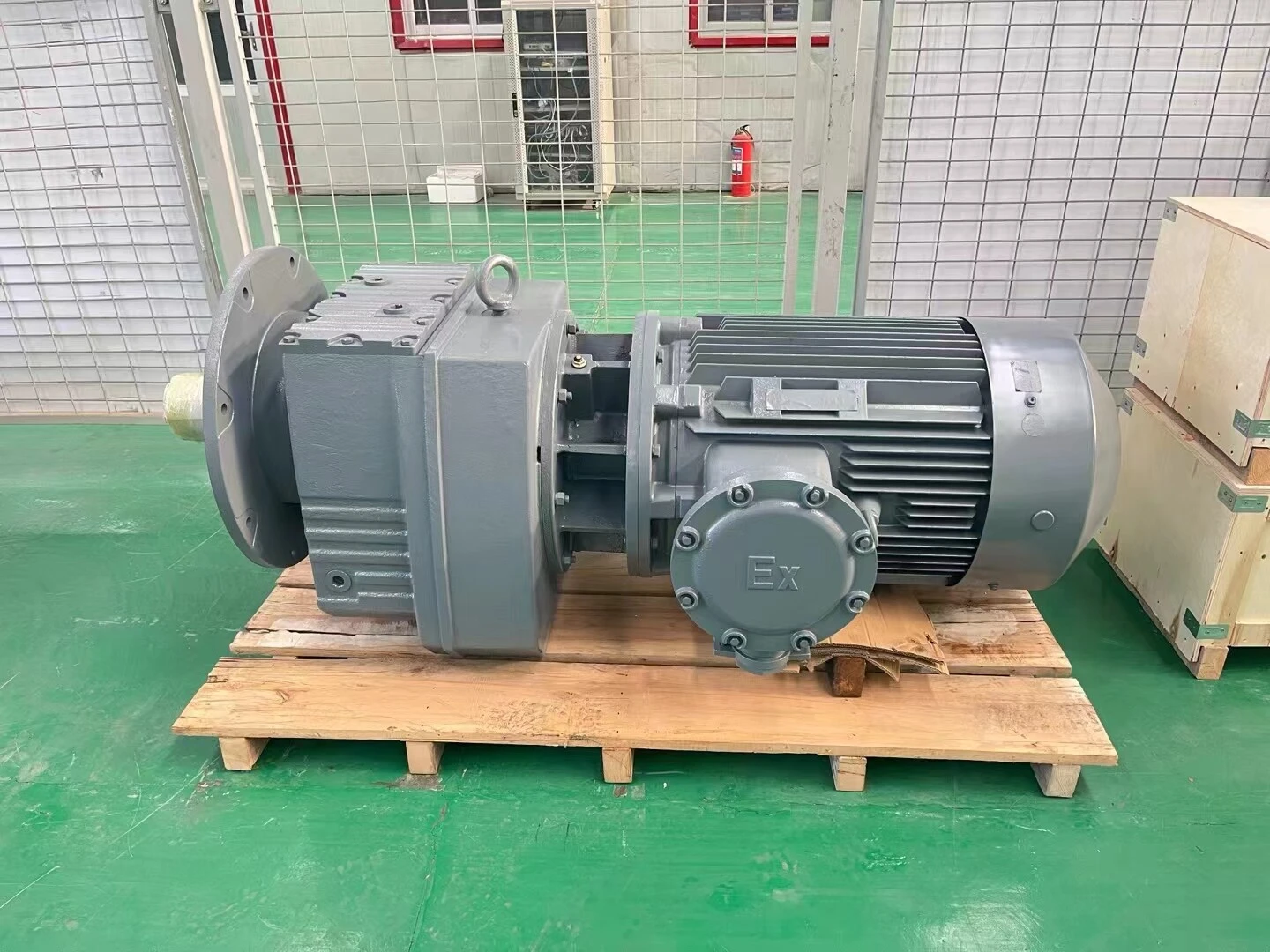

F Series Parallel Shaft Helical Gear Reducer

Transmission Ratio    3.77-276.77

Input Power   0.12-200KW

Output Torque   3.5-21700NM

Mounting Type   Horizontal (Foot Mounted)/Vertical (Flange Mounted)

Performance Features:

1.Our gear reducers are designed based on a modular system, allowing flexible pairing with various types of electric motors or other power inputs. The same model can be matched with multiple motor power ratings, enabling easy combination and interconnection between different models.

2.High transmission efficiency, with single-stage reducer efficiency reaching up to 96%.

3.Precise and wide-ranging transmission ratios. Combined models can achieve larger transmission ratios with lower output speeds.

4.Various mounting configurations available, including horizontal or flange-mounted installations in any position.

Operating Conditions:

1.Ambient temperature range: -40°C~50°C. (For startup below 0°C, lubricating oil must be preheated above 0°C)

2.Altitude not exceeding 1000 meters.

3.Input speed not exceeding 1800rpm, maximum gear peripheral speed not exceeding 22m/S.

4.Suitable for bidirectional operation.

5.No industry restrictions.

6.For other conditions, please contact our technical department.

Reducers are typically designed for start-stop cycles less than 10 times per hour at constant 20°C, based on rated torque design. Before selecting a model from the parameter table, please understand the working load and conditions. After determining the operating power, select the appropriate service factor from the parameter table.

Note: For applications requiring higher reliability, please consider necessary safety factors or consult us. For radial and axial loads on the output end, please contact our technical department. For reducer usage and maintenance, please refer to the included "Reducer Operation Manual".
