Note: If the user has higher reliability requirements for the decelerator, it is necessary to consider the necessary safety factor or consult by phone; for radial and axial loads at the output end, please contact our company's technical department; for the use and maintenance of the decelerator, please refer to the accompanying "Decelerator Operation Manual."

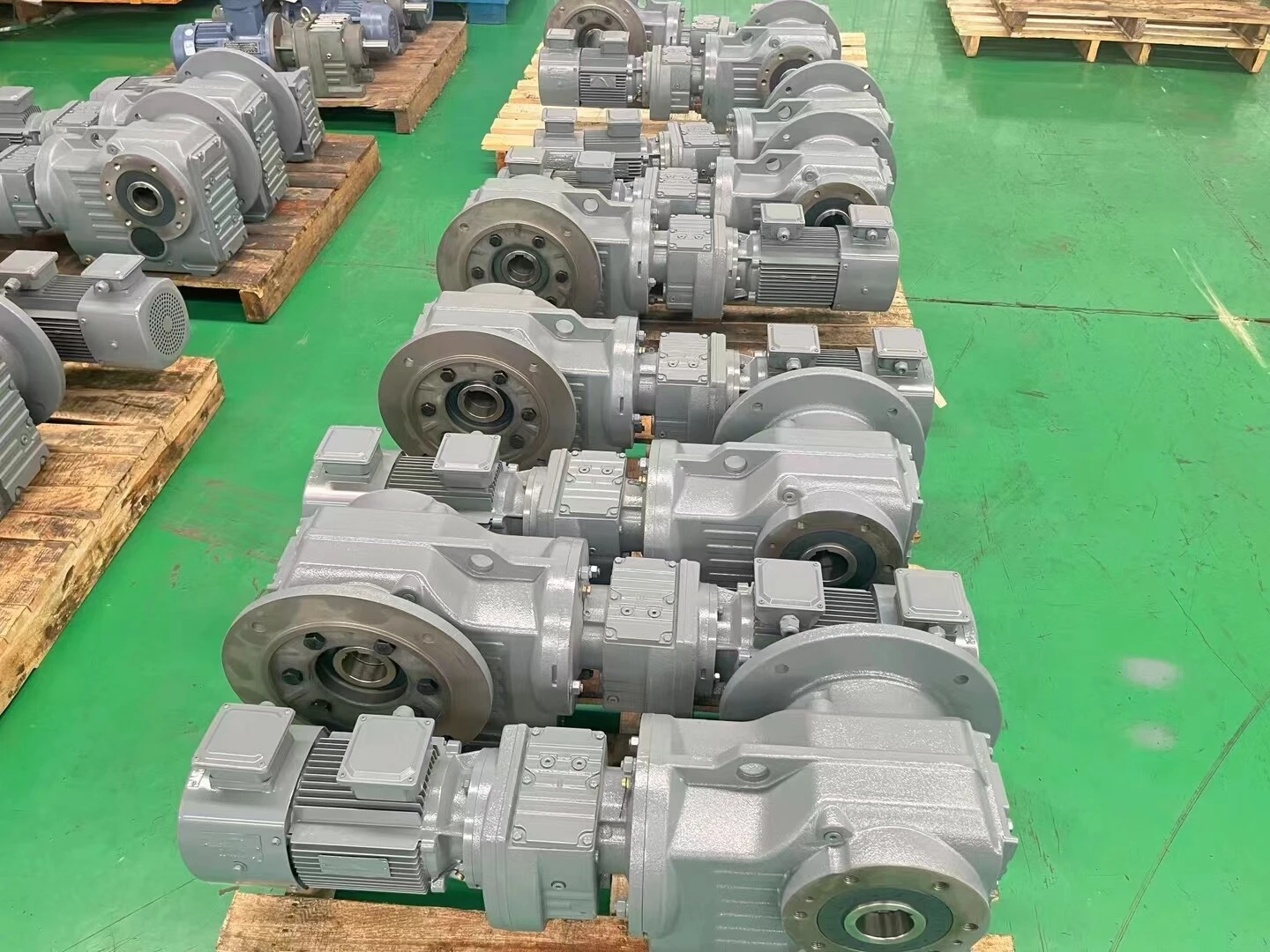

K series helical spiral bevel gear reducer
Transmission ratio 5.36-197.37
Input power 0.12-200KW
Output torque 10-62800NM
Installation mode: Horizontal (foot installation) / Vertical (flange installation)
Performance characteristics:
1. Our company's gear reducer is designed on the basis of modular combination system, which can be easily equipped with various types of motors or other power inputs. The same model can be equipped with motors of various powers. It is easy to realize the combination connection between various models.
2. High transmission efficiency, the efficiency of a single-type reducer is as high as 96%.
3. The transmission ratio is finely divided and has a wide range. The combined model can form a larger transmission ratio and a low output speed.
4. Various installation forms, horizontal or flange installation at any position.
Workplace Conditions:
1. Ambient temperature -40℃~50℃. (When starting below 0℃, the lubricating oil must be heated to above 0℃)
2. The altitude shall not exceed 1000 meters.
3. The input speed shall not exceed 1800rpm and the maximum peripheral speed of the gear shall not exceed 22m/S.
4. Can be used for forward and reverse operation.
5. No industry restrictions.
6. For use under other conditions, please contact our technical department.
The reducer is usually designed for a constant torque with a start-stop frequency of less than 10 per hour and a normal temperature of 20°C. Before selecting a machine model according to the selection parameter table, you must first understand the working machine load and working conditions. After the operating power is determined, select the use coefficient in the parameter table.
Note: If the user has high requirements for the reliability of the reducer, the necessary safety factor must be considered or call for consultation; for the radial load and axial load at the output end, please contact our company's technical department; for the use and maintenance of the reducer, please refer to the "Reducer Instruction Manual" attached to the machine.
