Working conditions: Worm speed <1500r/min; ambient temperature range -40~40°C, when below 0°C, lubricating oil must be preheated above 0°C before startup or low-freezing-point lubricant must be used; when above 40°C, cooling measures must be taken; reducer can operate in both forward and reverse directions.
Overview

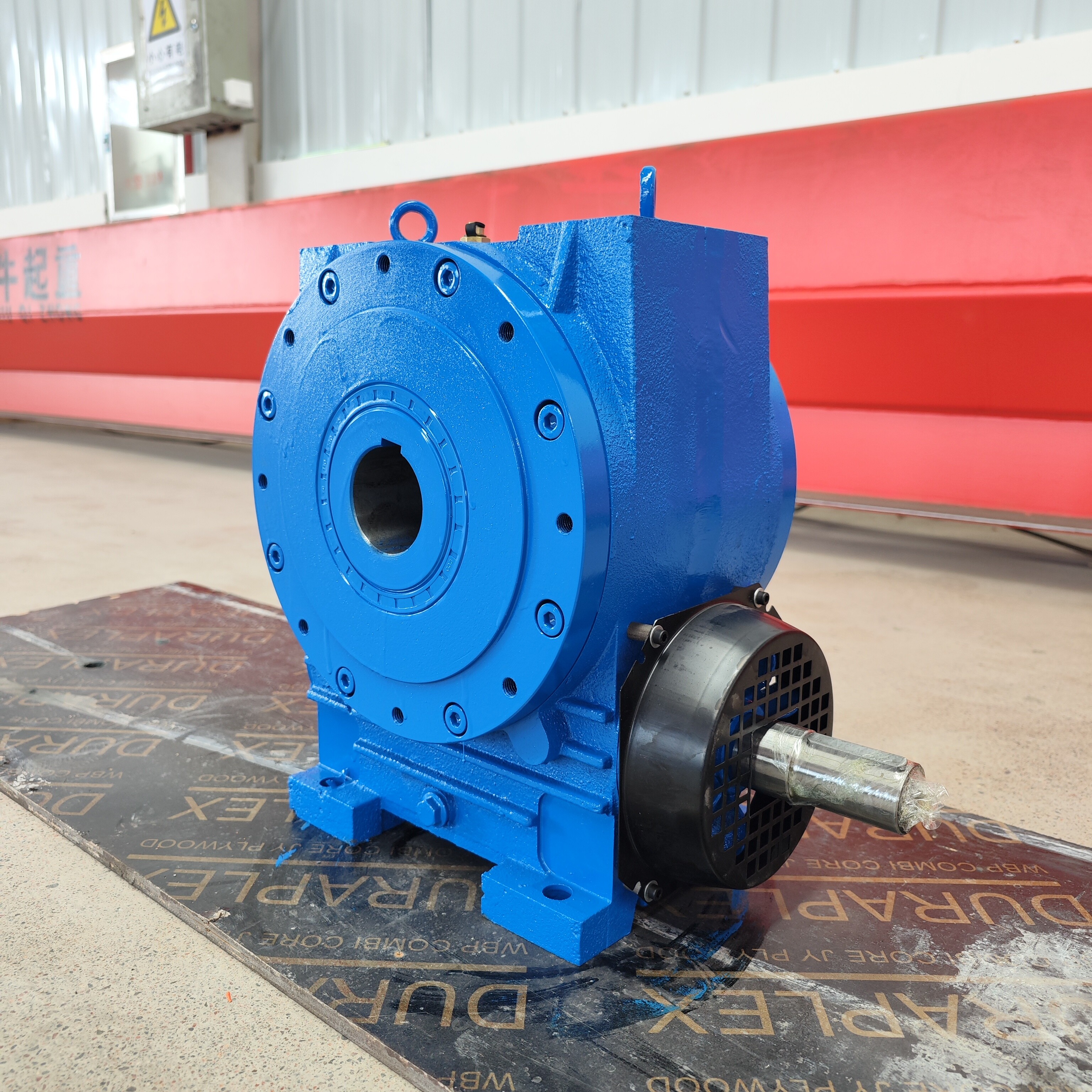

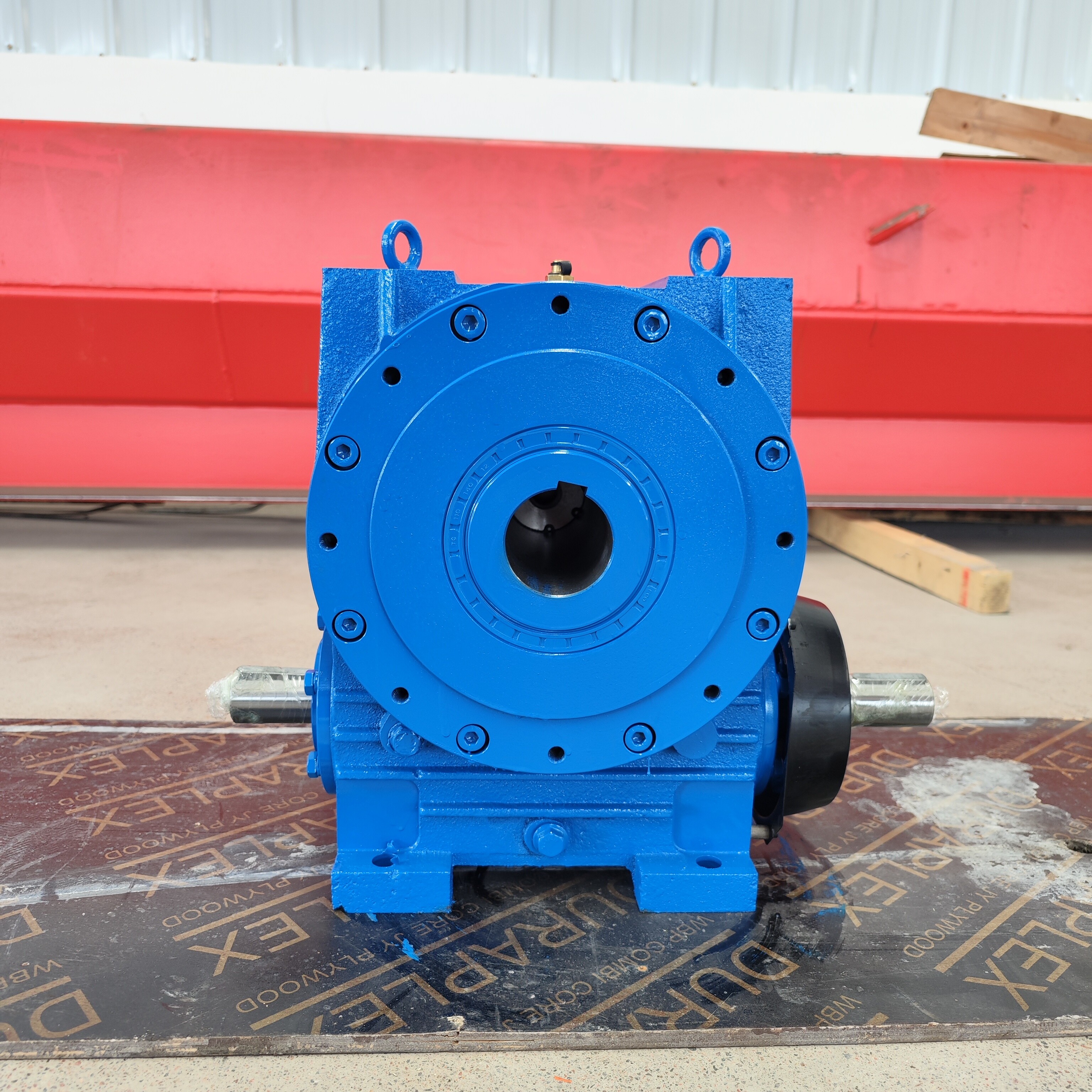

CW series modular arc cylindrical worm gear reducer (JB/T7935-1999) features an integrated body and modular design, utilizing ZC1 worm gear with carburizing, quenching, and grinding processes. It offers high load capacity, transmission efficiency, and long service life. Suitable for metallurgy, mining, lifting, transportation, chemical, construction, building materials, energy, light industry, and other sectors, it is a widely applicable general-purpose reducer.
Working conditions: Worm speed <1500r/min; ambient temperature range -40~40°C, when below 0°C, lubricating oil must be preheated above 0°C before startup or low-freezing-point lubricant must be used; when above 40°C, cooling measures must be taken; reducer can operate in both forward and reverse directions.
Model
CW type is a modular arc cylindrical worm gear reducer with ZC1 worm gear profile.
Center distance
The series includes fourteen center distances: 63, 80, 100, 125, 140, 160, 180, 200, 225, 250, 280, 315, 355, 400mm, with center distance unit in mm.
Transmission ratio
The series offers twelve transmission ratios: 5, 6.3, 8, 10, 12.5, 16, 20, 25, 31.5, 40, 50, 63.
Mounting configuration
