Name: T Series Helical Bevel Gear Right Angle Gearbox
SKU: 0

Product Center



Location: Home > bevel gear steering gear > T Series Helical Bevel Gear Right Angle Gearbox

Product Navigation

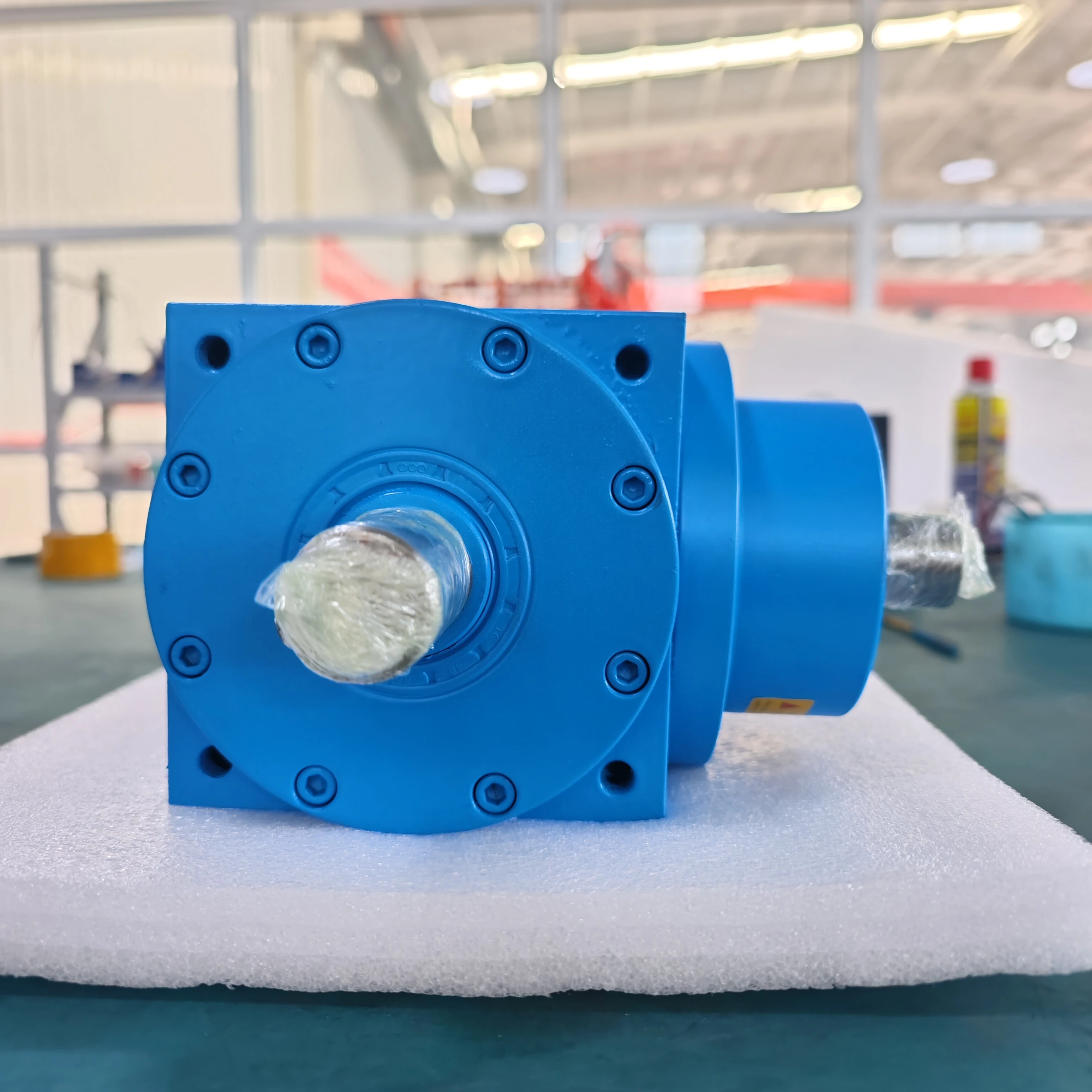

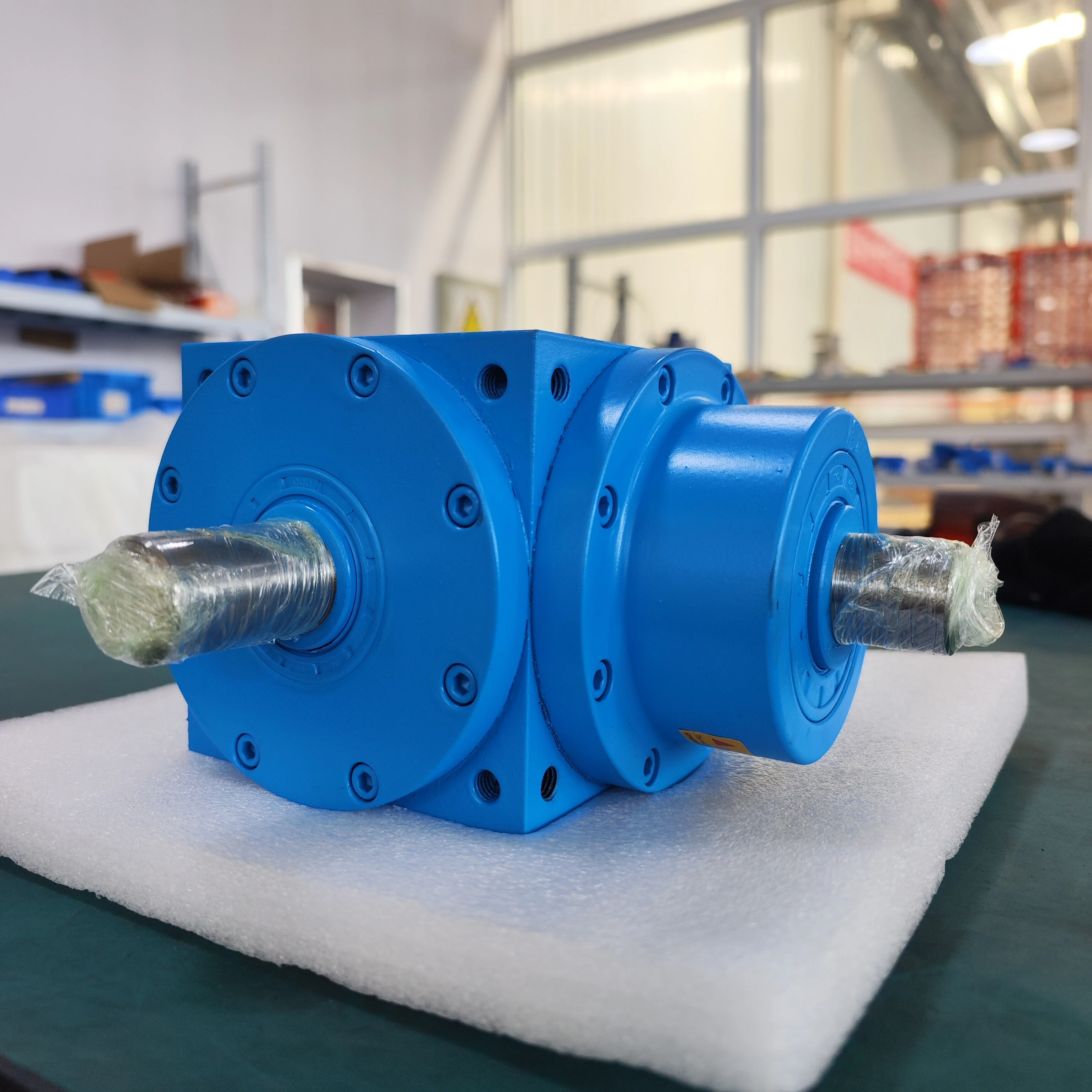

T Series Helical Bevel Gear Right Angle Gearbox

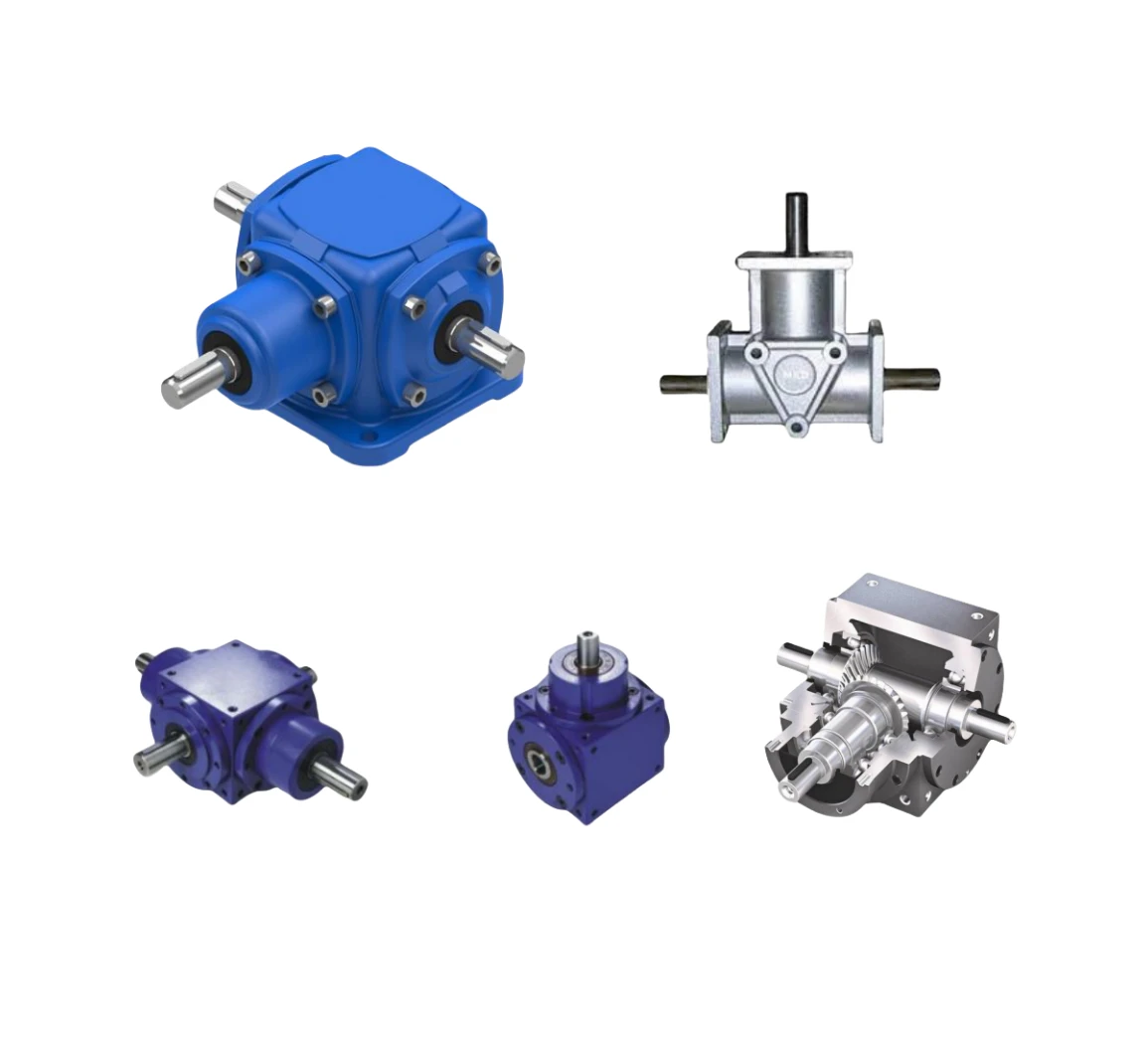

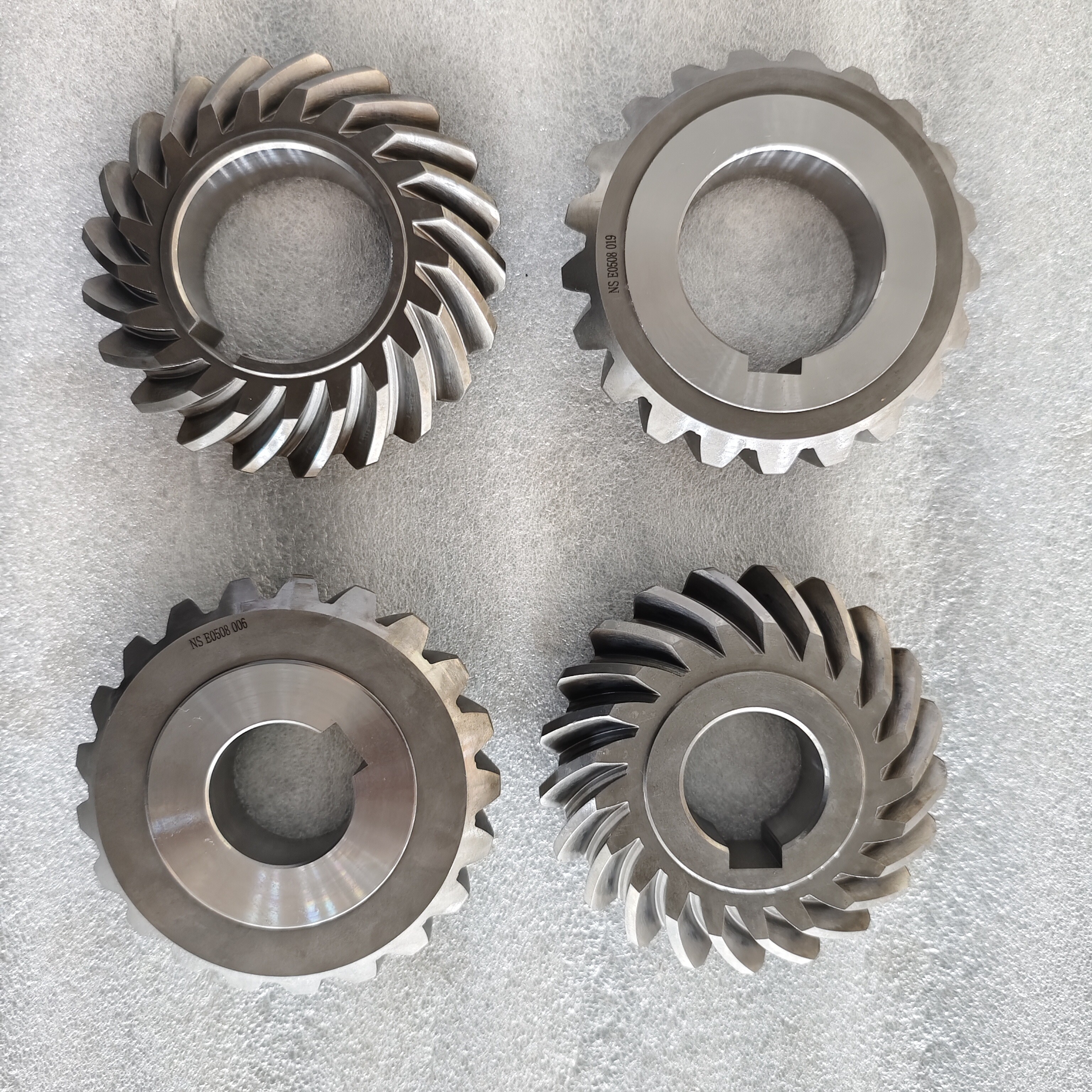

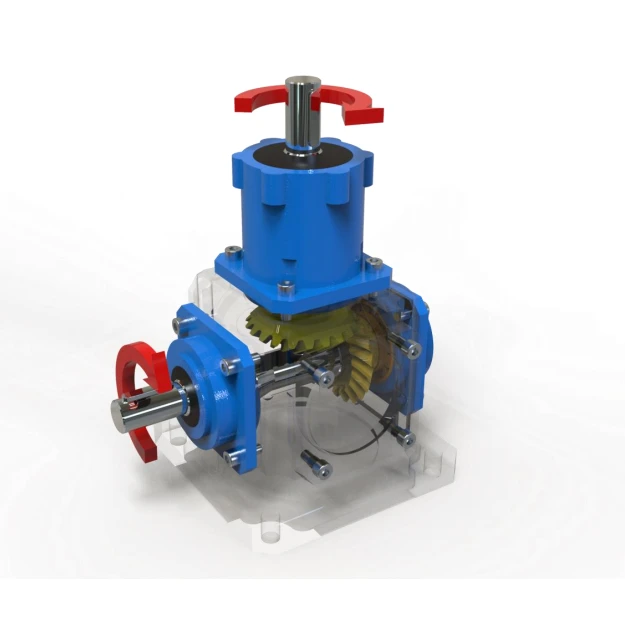

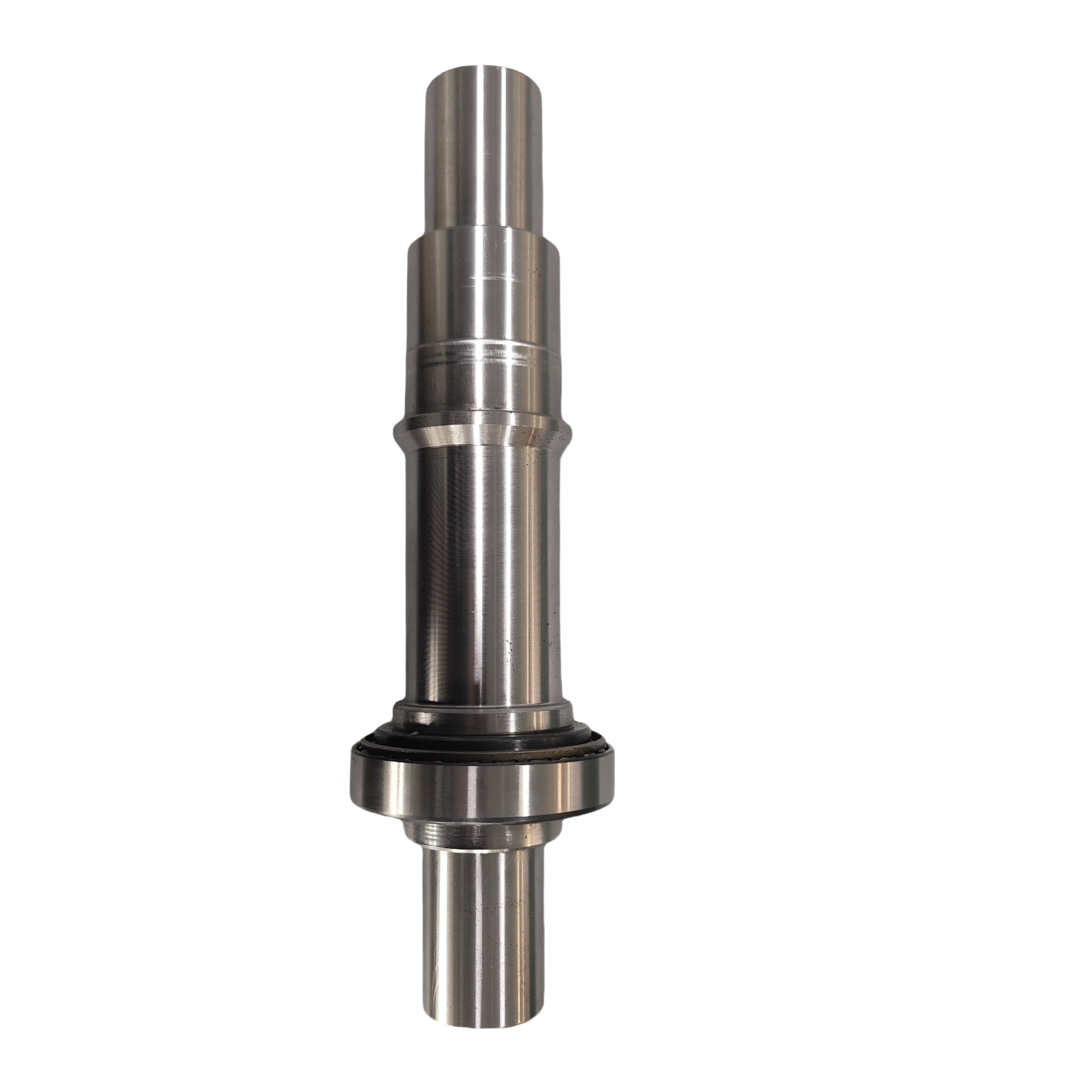

Spiral Bevel Gear Reducer Overview:
T Series single-stage spiral bevel gear reducer, standardized, multiple varieties, speed ratios 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, 5:1, all are actual transmission ratios. Average efficiency 98%.
Options include single horizontal shaft, double horizontal shaft, single vertical shaft, and double vertical shaft.

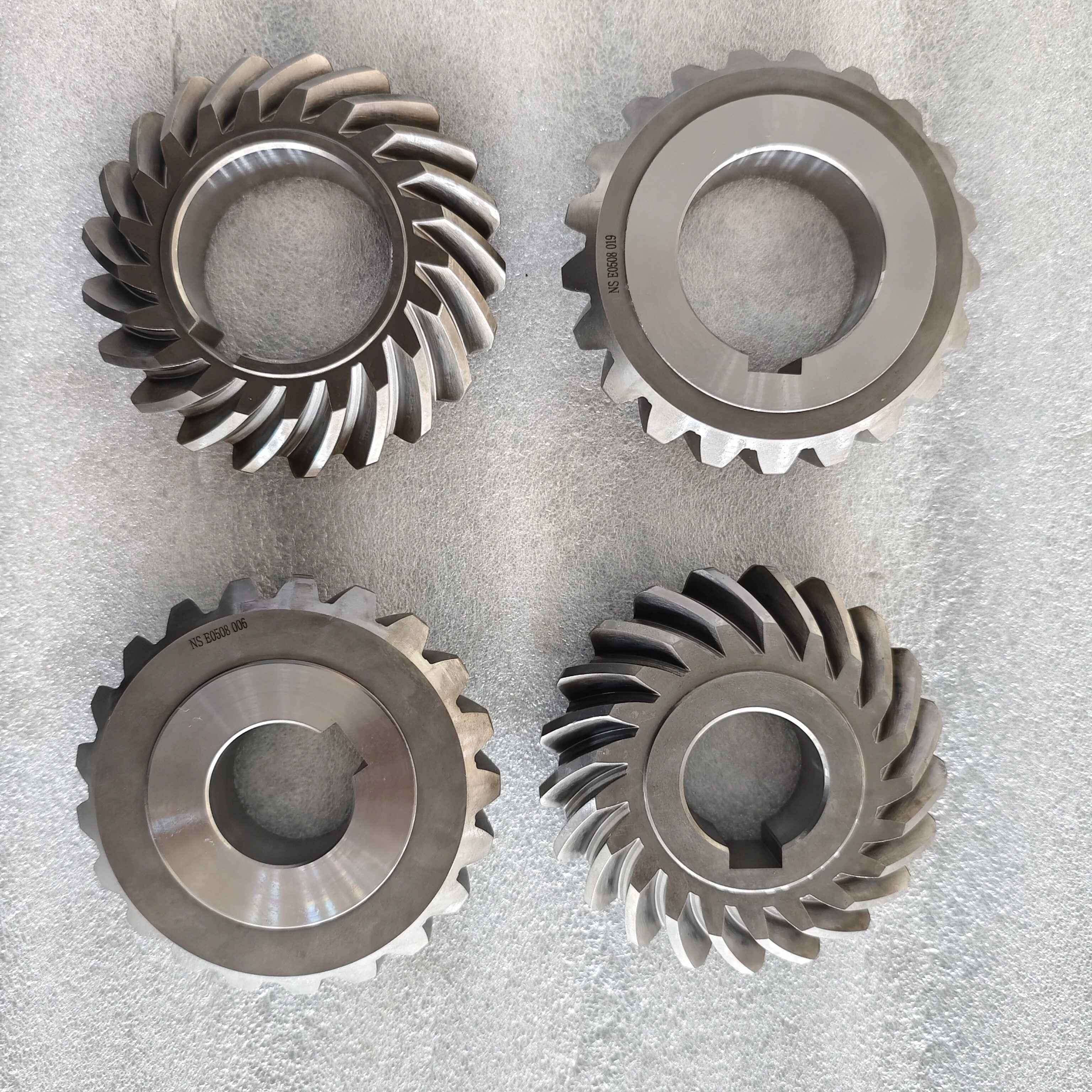

Spiral bevel gears can operate in both forward and reverse directions, with smooth transmission at low or high speeds, low noise, minimal vibration, and high load capacity.
When the speed ratio is not 1:1, horizontal shaft input and vertical shaft output result in speed reduction, while vertical shaft input and horizontal shaft output result in speed increase.

+86 188 8822 2133

+86 182 6300 7605

Spiral Bevel Gear Reducer Overview:

T Series single-stage spiral bevel gear reducer, standardized, multiple varieties, speed ratios 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, 5:1, all are actual transmission ratios. Average efficiency 98%.

Options include single horizontal shaft, double horizontal shaft, single vertical shaft, and double vertical shaft.

Spiral bevel gears can operate in both forward and reverse directions, with smooth transmission at low or high speeds, low noise, minimal vibration, and high load capacity.

When the speed ratio is not 1:1, horizontal shaft input and vertical shaft output result in speed reduction, while vertical shaft input and horizontal shaft output result in speed increase.

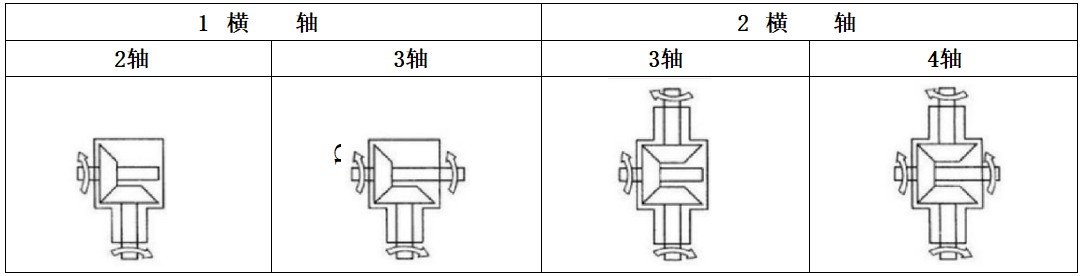

Directional Function:

Note: When the input shaft rotation direction changes, the output shaft direction changes accordingly.

T Series Weight Table

Type	T2	T4	T6	T7	T8	T10	T12	T16	T20	T25
m(kg)	2	10	21	32	49	78	124	188	297	488

T Series Fr(N) Table:

IN	n1 (rmin)	T2		T4		T6		T7		T8		T10		T12		T16		T20		T25
IN	n1 (rmin)	Horizontal Shaft	Vertical Shaft	Horizontal Shaft	Vertical Shaft	Horizontal Shaft	Vertical Shaft	Horizontal Shaft	Vertical Shaft	Horizontal Shaft	Vertical Shaft	Horizontal Shaft	Vertical Shaft	Horizontal Shaft	Vertical Shaft	Horizontal Shaft	Vertical Shaft	Horizontal Shaft	Vertical Shaft	Horizontal Shaft	Vertical Shaft
1:1	1450	265	216	833	951	1911	2450	2450	3136	3234	3381	4165	4508	5096	5586	10633	10976
	1150	323	235	882	1029	2058	2597	2744	3234	3479	3626	4459	4851	5488	6076	1368	11760	15386	15608
	870	402	255	960	1127	2205	2842	2989	3381	3773	3969	4851	5292	5880	6566	2446	12740	16660	17150	24794	25480
	580	549	314	1078	1323	2499	3185	3381	3822	4263	4459	5488	5880	6713	7301	4014	14504	18816	19404	28028	28910
	400	637	353	1372	1715	3189	3528	4018	4900	4851	5978	6272	7056	7742	8134	5680	16170	21070	21756	31360	32340
	300	696	392	1519	1960	3430	3528	4410	5537	5243	6958	6713	7987	8232	9065	7150	17640	23422	24108	34300	35280
	200	784	441	1911	1960	3430	3528	5096	6272	7889	8820	8575	9604	9261	10290	19600	19894	25970	26754	38612	39788
	100	980	588	1911	1960	3430	3528	5096	6272	8428	8820	9996	11760	11368	12593	22540	22540	28420	32928	39200	49000
	10	980	588	1911	1960	3430	3528	5096	6272	8428	8820	9996	11760	11858	14504	22540	22540	28420	33320	39200	49000
1.5:1 2:1 2.5:1 3:1	1450			1078	1960	2548	2842	3430	5390	4361	7987	5194	9212	5978	10486	5978	12152	7693	14602
	1150			1078	1960	3038	3087	4067	5978	5096	8820	6174	10486	7252	12152	6419	13083	8771	17934	12985	24647
	870			1078	1960	3430	3332	4573	6076	6076	8820	7448	11760	8869	14504	6958	14210	9506	19453	13573	29400
	580			1078	1960	3430	3528	5096	6174	7644	8820	9555	11760	11466	4504	7840	16072	10780	22001	15680	33222
	400			1078	1960	3430	3528	5096	6272	8428	8820	9996	11760	11858	14504	8820	17934	12005	24598	17542	37142
	300			1078	1960	3430	3528	5096	6272	8428	8820	9996	11760	11858	4504	9604	19600	13132	27342	19159	40474
	200			1078	1960	3430	3528	5096	6272	8428	8820	9996	11760	11858	14504	10829	22148	14798	30282	21658	45766
	100			1078	1960	3430	3528	5096	6272	8428	8820	9996	11760	11858	14504	3328	22540	18288	33320	26656	49000
	10			1078	1960	3430	3528	5096	6272	8428	8820	9996	11760	11858	4504	22540	22540	28240	33320	39200	49000

T Series Driven Equipment Coefficient f1:

Load Characteristics	Daily Operating Time (hours)
Load Characteristics	≤2	2~10	10~24
Uniform Load	1.00(1.00)	1.00(1.25)	1.25(1.50)
Moderate Impact	1.00(1.25)	1.25(1.50)	1.50(1.75)
Heavy Impact	1.25(1.50)	1.50(1.75)	1.75(2.00)

Note: When starting and stopping more than 10 times per hour, please use the values in parentheses.
