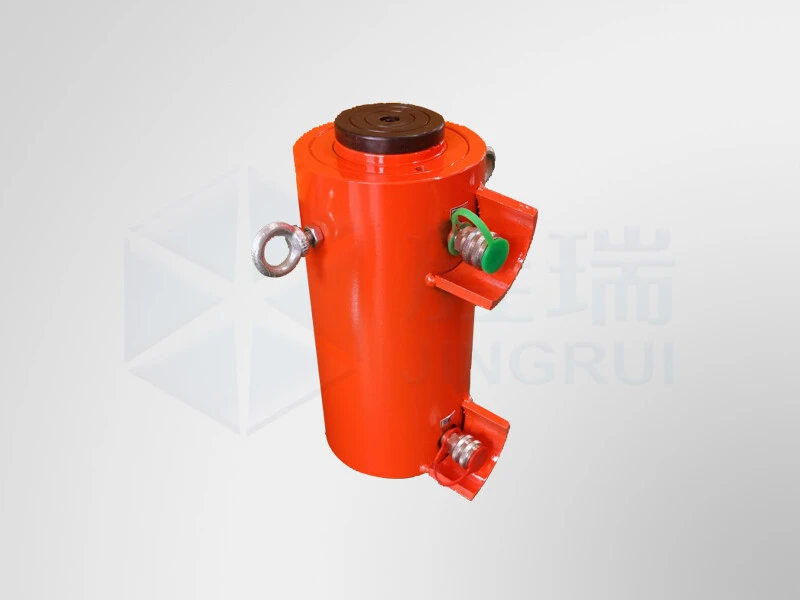

hydraulic jack

The size of the oil tank is a reference size, and the size of the oil tank is determined according to the number of jacks matched by the user during manufacturing.

+86 188 8822 2133

+86 182 6300 7605

Jacking Technology Parameters:

model number	Ejector force (T)	Rated pressure(Mpa)	Stroke (mm)	Total length(mm)	Width (mm)	Height (mm)
DTL200	200	32	2000	2250	350	400
DTL200	200	32	2500	2350	350	400
DTL200	200	32	3000	2500	350	400
DTL200	200	32	3500	2600	350	400

model number	Ejector force (T)	Rated pressure(Mpa)	Stroke (mm)	Total length(mm)	Width (mm)	Height (mm)
DTL280	280	32	3500	2600	370	450
DTL280	280	32	3000	2400	370	450
DTL280	280	32	2500	2200	370	450
DTL280	280	32	2000	1900	370	450

model number	Ejector force (T)	Rated pressure(Mpa)	Stroke (mm)	Total length(mm)	Width (mm)	Height (mm)
DTL320	320	32	2000	2400	420	500
DTL320	320	32	2500	2550	420	500
DTL320	320	32	3000	2750	420	500
DTL320	320	32	3500	2850	420	500

Note: The oil tank dimensions are reference measurements. The actual oil tank dimensions will be determined based on the quantity of jacks configured by the user during manufacturing.

Remark: In addition to meeting customer requirements, our company can also produce special-purpose jacks and other products (dual-acting hydraulic jacks).
