Mixer scraper

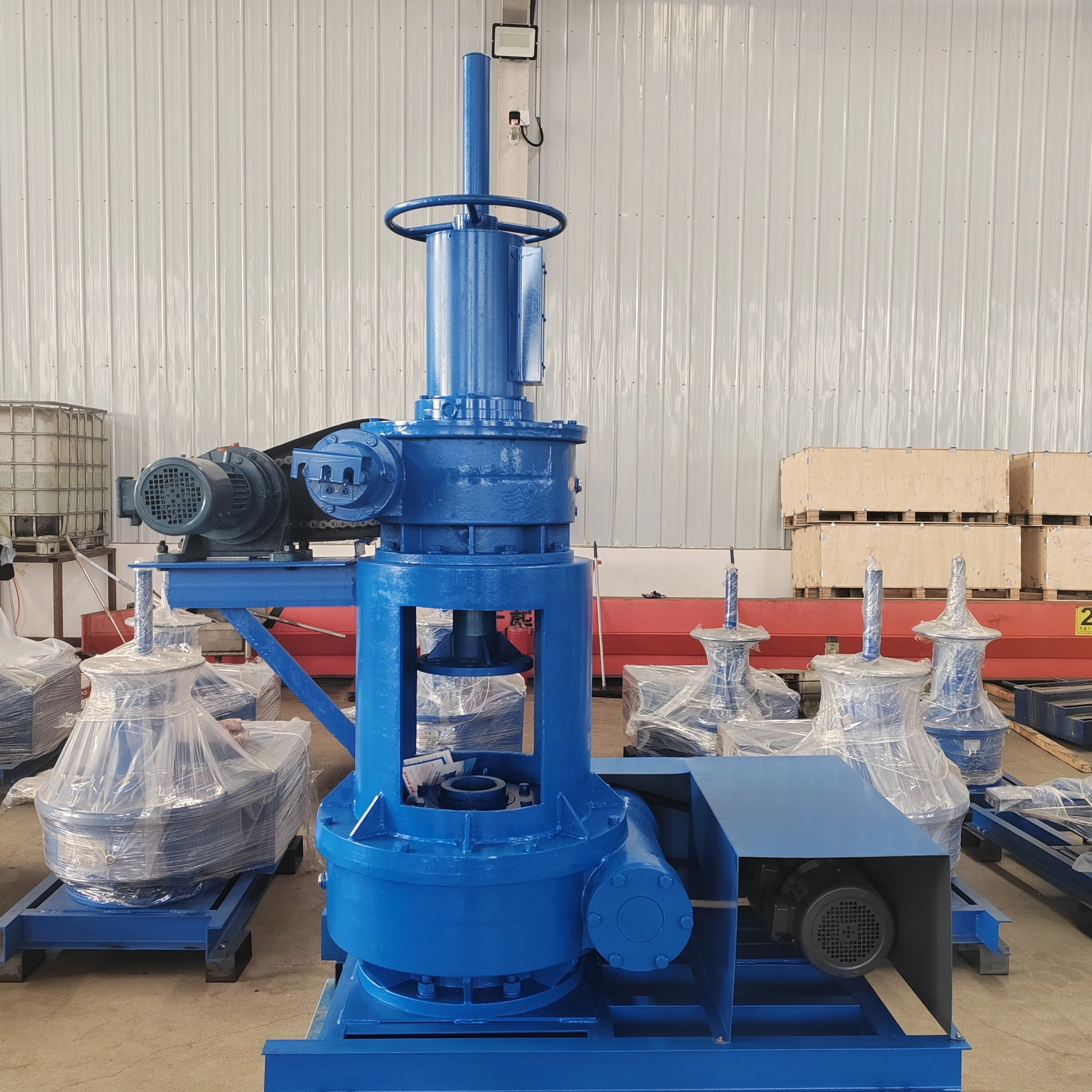

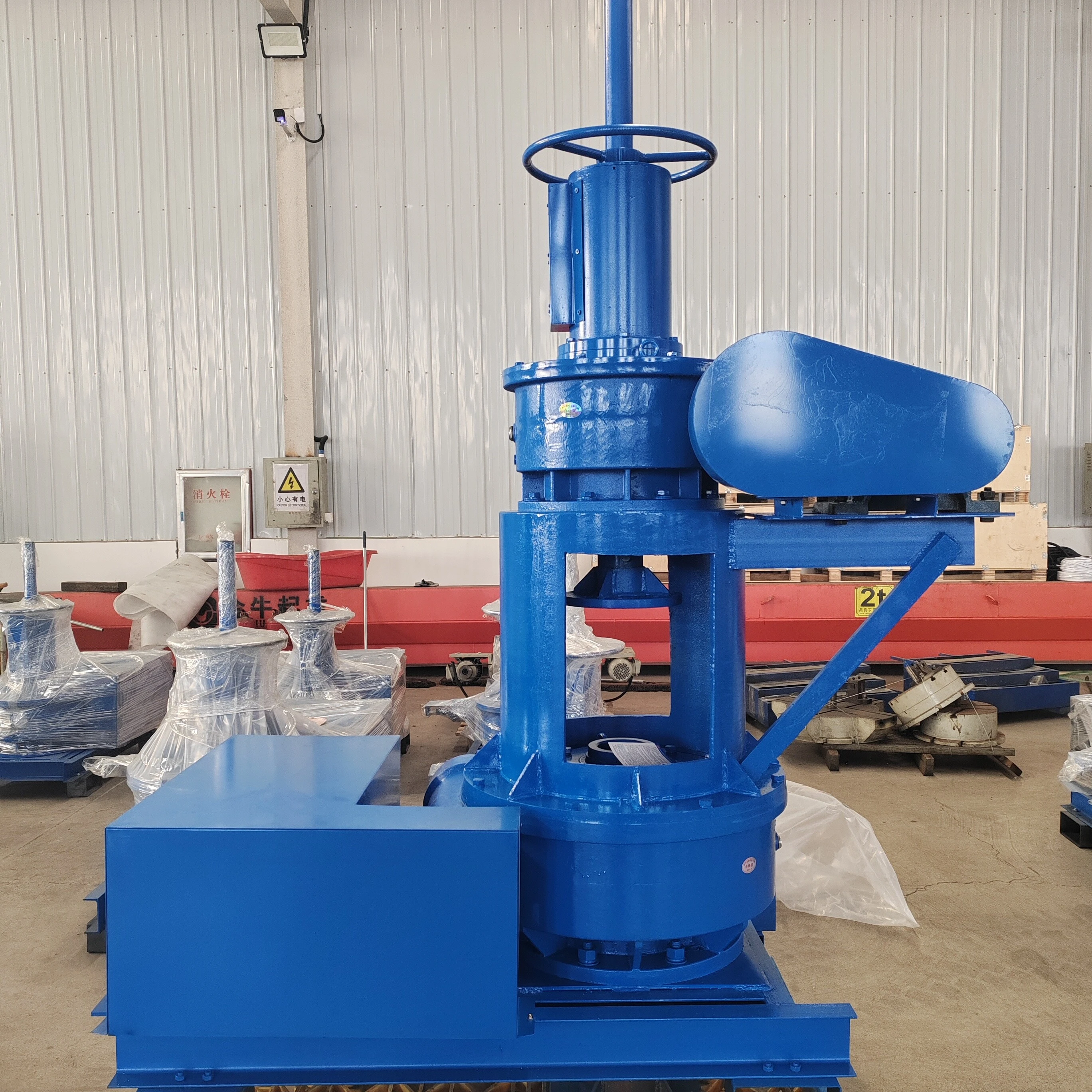

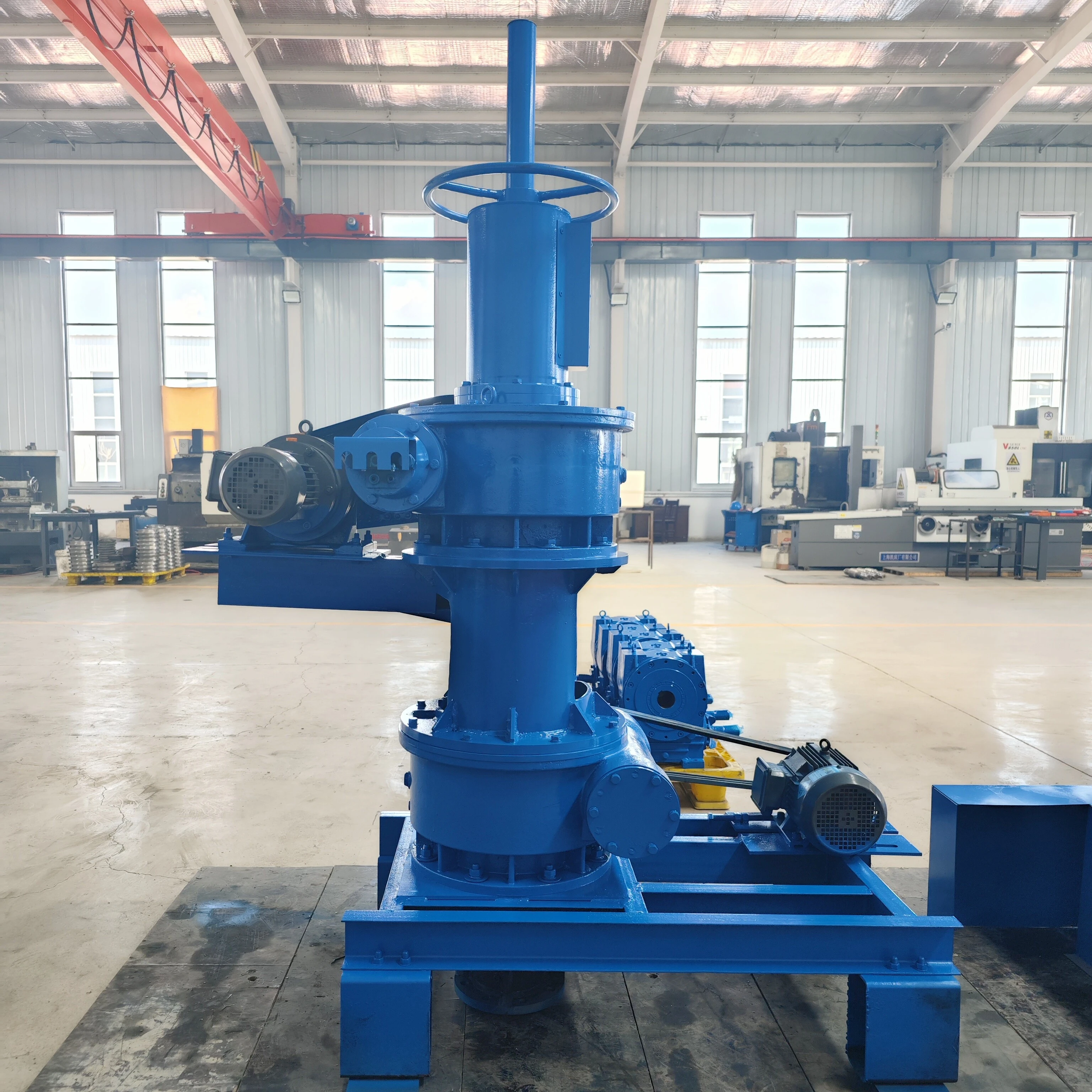

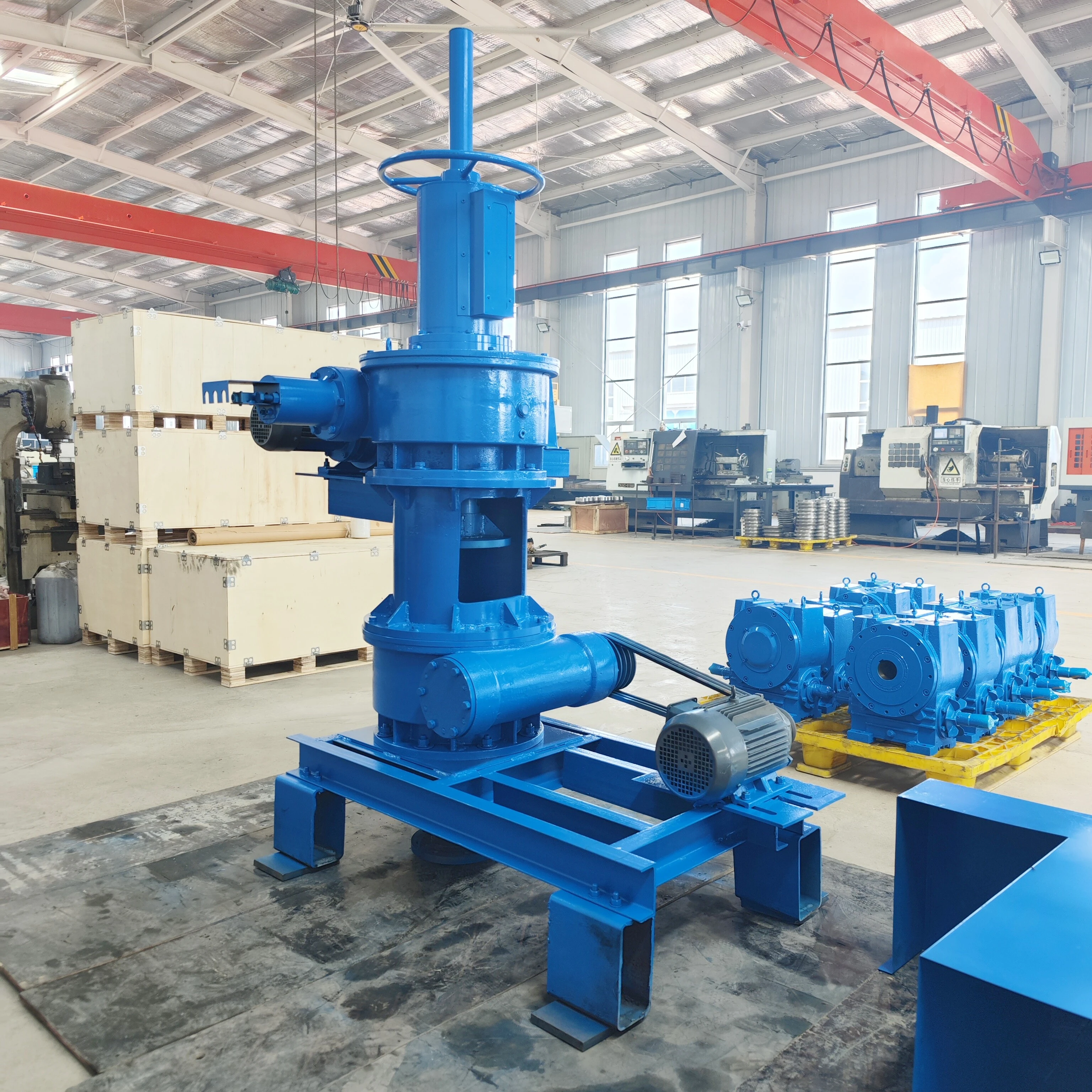

The JWZ scraper drive device adopts a single-stage worm gear speed reduction transmission, which can be driven by a pendulum needle reducer, an adjustable speed motor through a chain wheel chain, a triangular belt wheel belt, or directly connected. This equipment is a low-speed wheel-output transmission device, with large output torque, low noise, stable operation, and no leakage. It is mainly used for water treatment equipment and mud scraper mechanical matching products. The reducer comes in various forms, including manual lifting, manual-electric dual-purpose lifting, etc. Depending on user requirements, safety shear pins and spring-type overload automatic protection devices (JGZ4500) can be added to ensure the safe operation of the speed sleeve equipment.
18888222133
+86 182 6300 7605


JWZ clarifier scraper dedicated worm gear speed reducer specifications mainly include:

JWZ200JWZ2410JWZ350JWZ420JWZ460, etc.

Choose the appropriate worm gearbox based on the size of the clarifier tank. The following data is for reference only:

Diameter 6 meters: Choose JWZ200-8-40-ST     (DT)

Diameter 8 meters: Choose JWZ240-10-40-ST(DT)

Diameter 10 meters: Choose JWZ350-10-60-ST     (DT)

Diameter 13 meters: Choose JWZ420-12-60-ST     (DT)

Diameter 6 meters: Choose JWZ460-10-60-ST     (DT)

Each of the above models can be equipped with overload protection devices, manual lifting (ST) or electric lifting (DT), customized according to customer requirements.

The first-stage reduction motor usually adopts a dual-motor pendulum worm gear reducer. Choose the appropriate reduction motor based on the specifications of worm gearbox. The connection between the worm gear reducer and the chain wheel adopts a chain link.


Technical parameters:

Serial  number

1

2

3

4

5

6

7

8

Model  number

JWZ147

JWZ200

JWZ240

JWZ300

JWZ350

JWZ420

SWZ460

JWZ500

Module  number

6

8

10

10

10

12

10

14

Center distance

147

200

240

300

350

420

460

500

Transmission ratio

20

40

20

40

40

50

60

60

80

60

Rated input power (KW)

0.55

0.75

0.75

1.1

1.5

1.5

1.5

3

Rated output torque (N.m)

2400

2475

4500

4650

7950

12510

18450

26570

34690

46000
