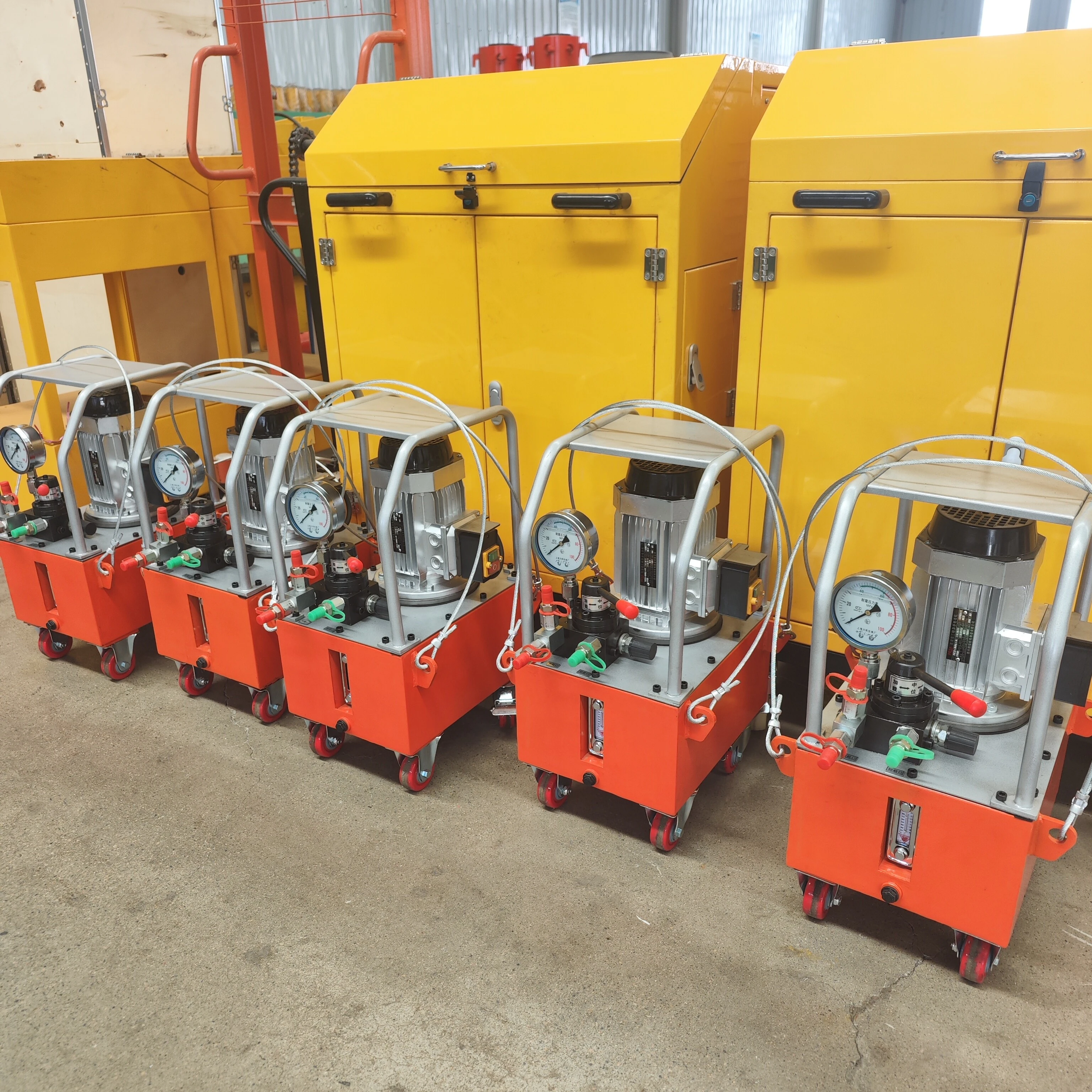

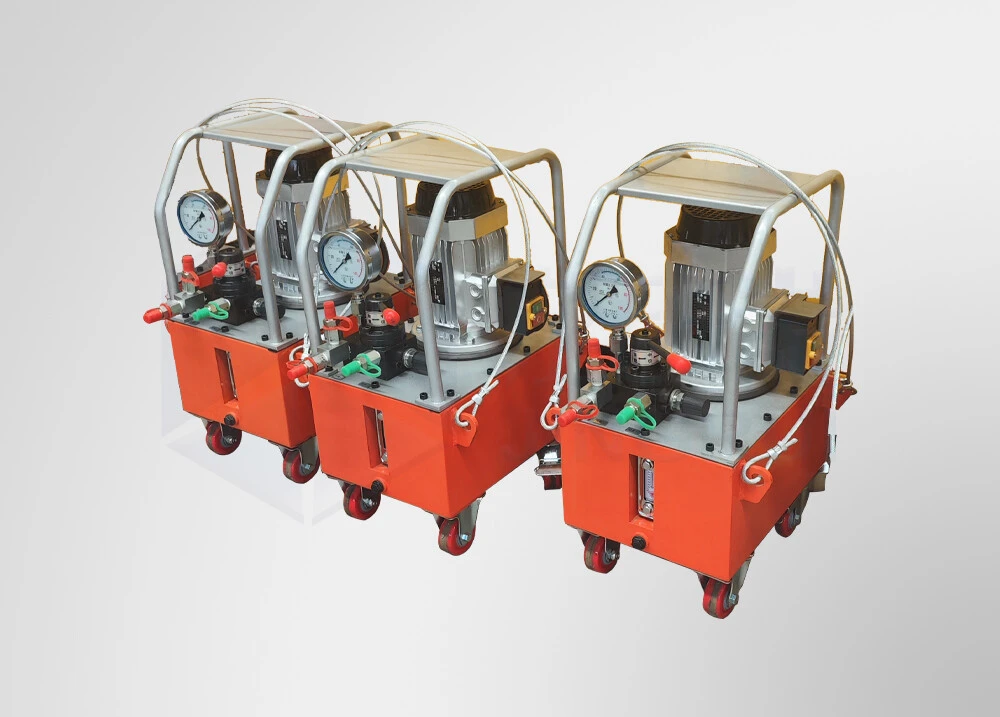

Static Load Test Electric Pump

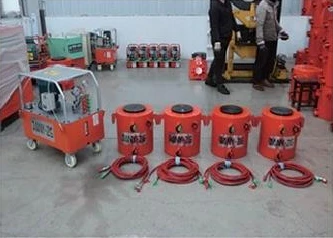

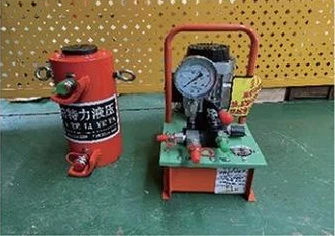

The static load test electric pump is a hydraulic tool designed for use with our company's QF oil pressure jack (commonly known as a hydraulic jack). It is widely used in construction, shipbuilding, metallurgy, mining, petrochemical, railway engineering, and other industrial applications. In addition to performing basic operations such as lifting, pushing, expanding, and squeezing, it can also achieve functions like stretching, clamping, and alignment. This oil pump features leakage protection, lack-of-phase protection, overload protection, and supports step-by-step unloading, gradual loading, stable pressure, hydraulic lock, and manual pressure relief valve.
Motor Power (KW) | Pressure (MPa) | Flow Rate (L/min) | Oil Tank Capacity (L) | Model | Applicable Machine Type |
0.75 | 63 | 0.4 | 8 | BZ70-0.4-8L | 50T-100T |
1.5 | 63 | 1.0 | 24 | BZ70-1.0-20L | 100T-320T |
1.5 | 63 | 1.0 | 24 | BZ70-1-Phase2-20L | 100T-320T |
2.2 | 63 | 2.0 | 60 | BZ70-2.0-40L | 500T-630T |
2.2 | 63 | 2.0 | 60 | BZ70-2.0-Phase2-40L | 500T-630T |
2.2 | 63 | 2.0 | 60 | BZ70-2.0-Phase4-60L | 500T-630T |
4 | 63 | 4.0 | 60 | BZ70-4.0-60L | 500T-1000T |
4 | 63 | 4.0 | 120 | BZ70-4.0-Phase2-120L | 500T-1000T |
4 | 63 | 4.0 | 120 | BZ70-4.0-Phase4-120L | 500T-1000T |
Model | Height | Cylinder Diameter | Rod Diameter | Weight | Ton Capacity | Outer Diameter | Stroke |
QF50T-20B | 375mm | 100mm | 70mm | 40kg | 50T | 133mm | 200mm |
QF100-20B | 380mm | 140mm | 100mm | 61kg | 100T | 180mm | 200mm |
QF200T-20B | 390mm | 200mm | 140mm | 145 kg | 200T | 270mm | 200mm |
QF320T-20B | 420mm | 250mm | 180mm | 225kg | 320T | 325mm | 200mm |
QF500T-20B | 490mm | 320mm | 250mm | 450kg | 500T | 425mm | 200mm |
QF630T-20B | 530mm | 360mm | 280mm | 650kg | 630T | 465mm | 200mm |
QF800T-20B | 570mm | 400mm | 300mm | 900kg | 800T | 530mm | 200mm |
QF1000T-20B | 600mm | 450mm | 320mm | 1165kg | 1000T | 610mm | 200mm |
QF1200T-20B | 680mm | 500mm | 360mm | 1600kg | 1200T | 680mm | 200mm |
QF1500T-20B | 760mm | 550mm | 380mm | 2200kg | 1500T | 760mm | 200mm |
